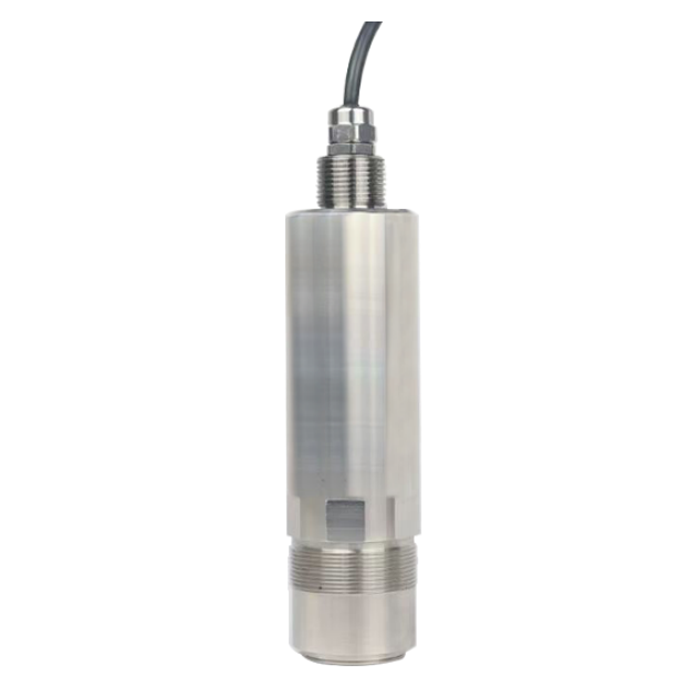

DTS-320 turbidity sensor

Product description:

DTS-320 is a digital turbidity sensor customized and developed for industrial engineering monitoring. It is designed for industrial waterproofing and high temperature resistance, and is made of 316L stainless steel throughout; Adopting the mature 90 ° scattered light principle from abroad, using the design method of infrared LED light source and fiber optic transmission optical path; Strong ability to resist external light interference. Built in temperature sensor with automatic temperature compensation, suitable for long-term online monitoring of environmental use.

Characteristic:

1. Digital sensor, directly outputs Rs-485 digital signal, supports MODBUS/RTU

Principle of 2.90 ° angle scattered light, built-in temperature can automatically compensate

3. Fiber optic structure with strong resistance to external light interference

4. Infrared LED light source, with added filter design, resistant to light source interference, and good stability

5. Surface anti-corrosion and passivation treatment

6. Low power consumption of sensors and anti-interference design of internal circuits

1. Installation

Attention: The sensor is installed in an area with slow water flow and no bubbles; The sensor should be installed at a distance of 5cm from the surrounding walls

Connections

l Brown wire - power wire（12 or 24VDC）

l Black wire—Ground wire（GND）

l Blue wire—485A

l White wire—485B

l Bare wire - shielding layer

Sensor cable: 4-wire AWG-24 or AWG-26 shielded wire.

Outer diameter: 6.0-6.2mm; bend resistant twisted pair shielded cable.
