Name
Parameter
Output signal
Support RS-485,MODBUS/RTU Protocol
Measurement method
UV254 absorption method
COD Range
0.3-500mg/L equiv.KHP
COD accuracy
+5%F.S. qe==equiv.KHP
COD Defence rate
0.1mg/L or 0.01mg/L equiv.KHP
Turbidity measurement range
0-100 NTU
Repeatability
+-1%f.s. equiv.KHP
Working conditions
0.1-50 degree Celsius,<0.1Mpa
Calibration method
TWO point calibration
Response Time
10 seconds T90
Power supply
12 or 24VDC +- 10%, 15mA, 200mA motor start
Measurement
Dia:48mm,length:186mm
Level of protection
IP68 water depth 10m
Flow rate
Less than 3m/s
Service Life
3 year above,brush:18 months

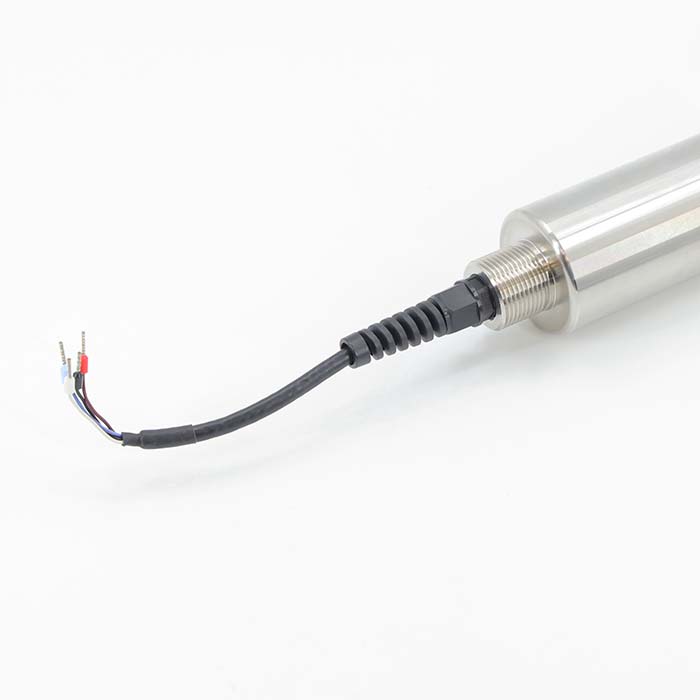

Cable length
10 meters(standard) can be customized
Sensor housing material
316L stainless steel or POM
Maintenance frequency
Product Description：

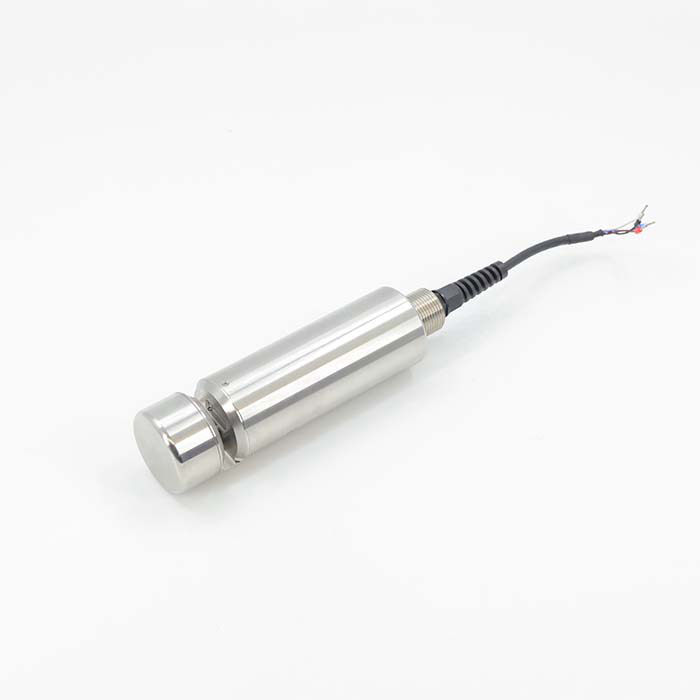

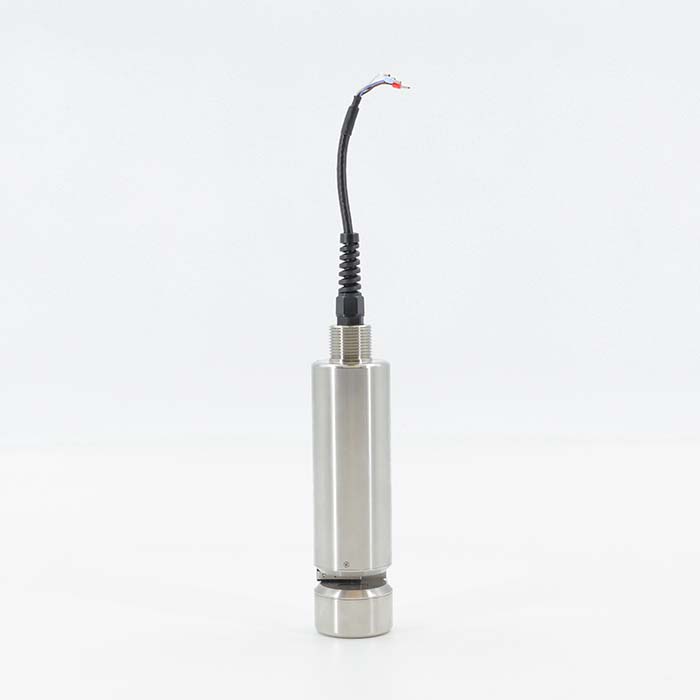

COD-210 is a new type of UV254 COD sensor introduced by DAO Yi, using ultraviolet absorption method, bringing together the industrys many years of application development experience, the sensor is small in size, integrated internal self-cleaning, the surface is treated with anti-corrosion treatment; the reaction analysis speed is fast, no chemical reagents are required, the use of deep UV LED cold light source imported from abroad, the luminescence measurement life is long, while the use of 550nm compensation light source, effectively eliminating the effect of turbidity and chromatography on the sensor measurement, with higher reliability.
Features:
1. Digital sensor, direct output of Rs-485 digital signal, support MODBUS/RTU
2. Dual optical path measurement; 254nm and 550nm compensated light source to eliminate turbidity and chromaticity effects
3. Imported UV254 LED cold light source, long life, small drift; filter film design, small interference, stable
4. Can measure parameters such as COD, TOC, turbidity and temperature, without chemical reagents and sample decomposition

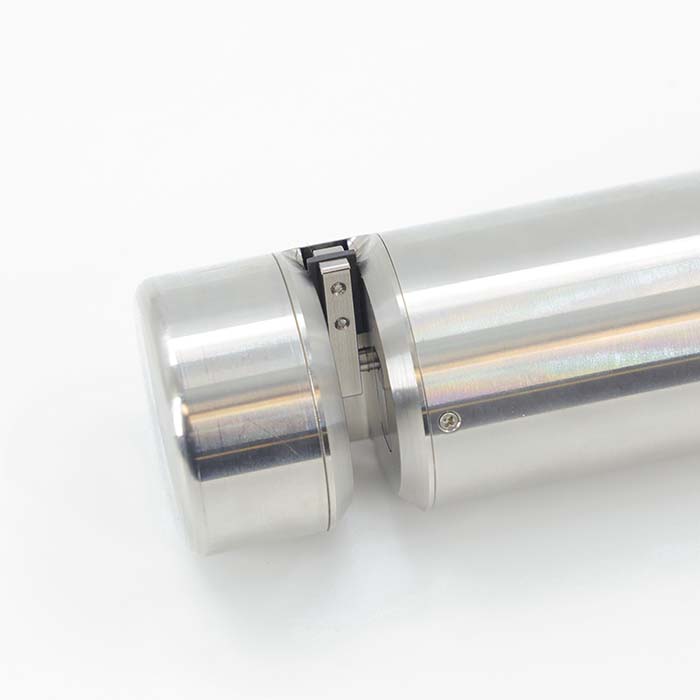

5. Small size, internal integrated automatic cleaning brush, effectively prevent biological adhesion;
6. Surface for anti-corrosion passivation treatment
7. Low sensor power consumption, internal circuit anti-interference design
Sensor 3 months,brush:6months
Logistics transportation:
FAQ：
Q1:Are you factory or trading company?
A: We are a manufacture with independent import and export rights.
Q2:How is the quality of your products?
A: Lotus is a manufacturer with production for more than 6 years,We have a complete production
management system and Independent laboratory for testing equipment with a high product
qualification rate .
Q3:How can I get the samples?
A: contact sales to get the samples
Q4:what’s the Minimum order Quantity and Payment?
A1: Payment:EXW,FOB,CFR,CIF,etc.
A2:Minimum：trial order is also available,but with sample price.
Q5:what’s your Lead time?
A: As the General size have stock with fast delivery,the customized size need to negotiate mostly
within 15days.
