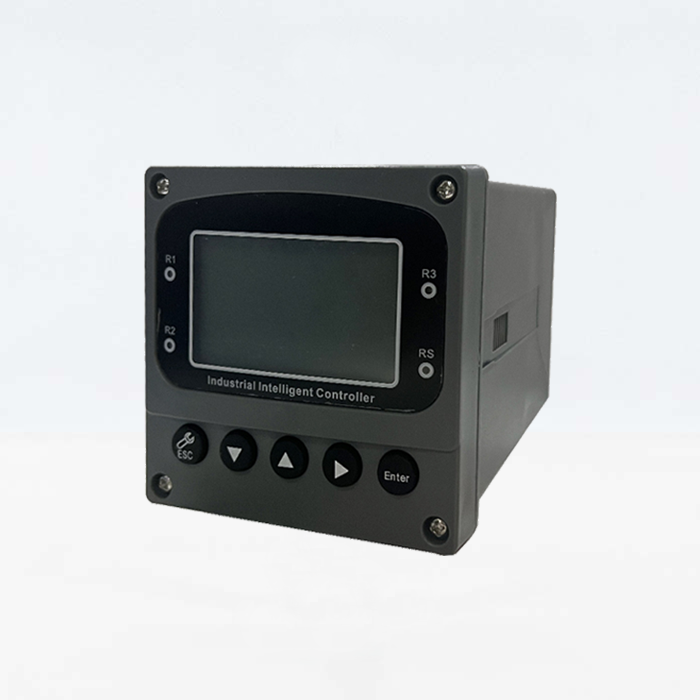

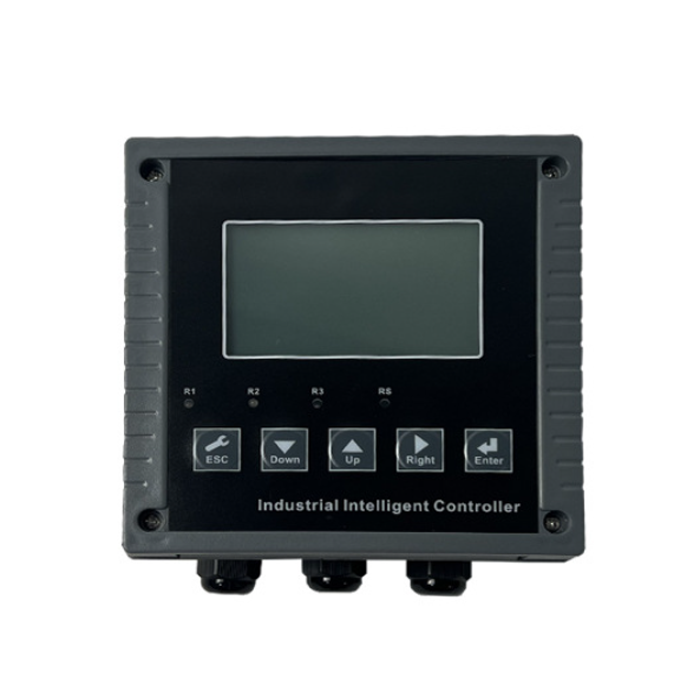

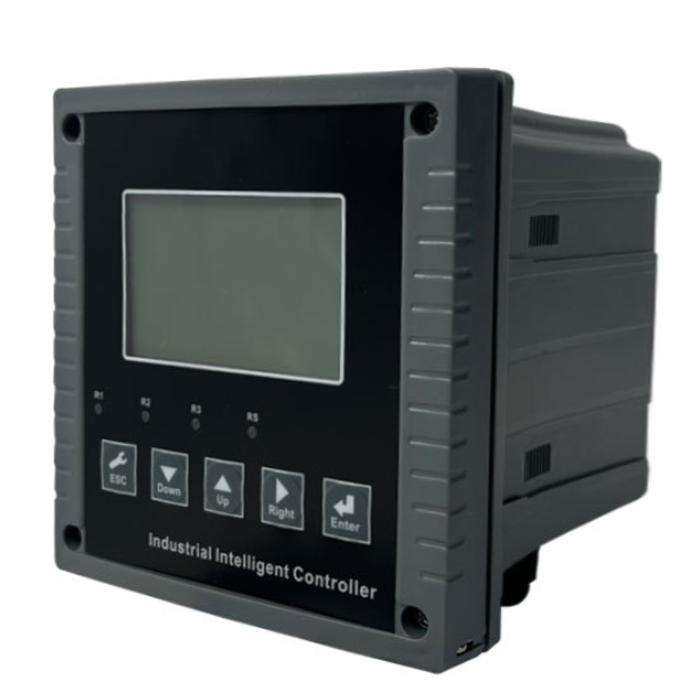

DMC-210 Digital Display Controller

Type:Display Controller Material: PPSPlastic Color: Black Model:DMC210 OEM:Available MOQ:1 pcs Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

DMC-210 display controller is an online multi parameter intelligent controller with high intelligence and flexibility. It can measure multiple water quality parameters separately and is widely used in urban sewage treatment plants, water supply, surface water and other industries to continuously measure solutions

Basic Function
1. Diverse languages, factory standard Chinese interface, switchable English interface
2.4-20mA output, using isolation technology, anti-interference ability
3. The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
4. Password management function to prevent misoperation by non professionals
5. The menu prompt function greatly facilitates user operation

Instrument technlica parameters
Temperature compensation: 0-100 ℃ manual/automatic Signal output: 4-20mA isolated protection output, maximum load 500 Ω
Alarm output: Three groups can correspond to high and low point alarms (3A/250VAC) at will, with normally open contact relays
Power supply: AC220V or DC24V
Power consumption: ≤ 10W
Environmental conditions: (1) Temperature 0-50 ℃ (2) Humidity ≤ 85% RH

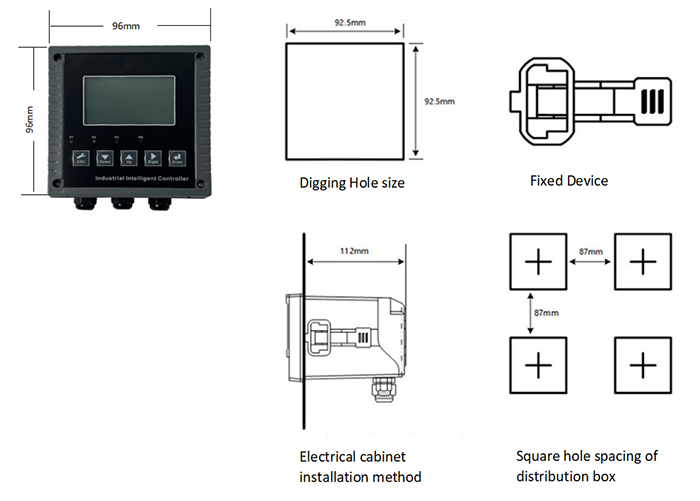

Dimensions: 96 × 96 × 132mm (height × width × depth)
Hole size: 92.5 × 92.5mm (height × width)

Name	Parameter
Power supply	(Default)AC220V or DC24V Optional
Access Signal	The RS485 digital signal sensor produced by the company supports MODBUS/RTU
Output Signal	4-20mA Isolation protection output,Maximum Load 500Ω
Working conditions	Temperature 0-50°C,Humidity ≤85%RH
Level of protection	IP68
Service Life	2 years or more,depends
Housing material	PPS

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
