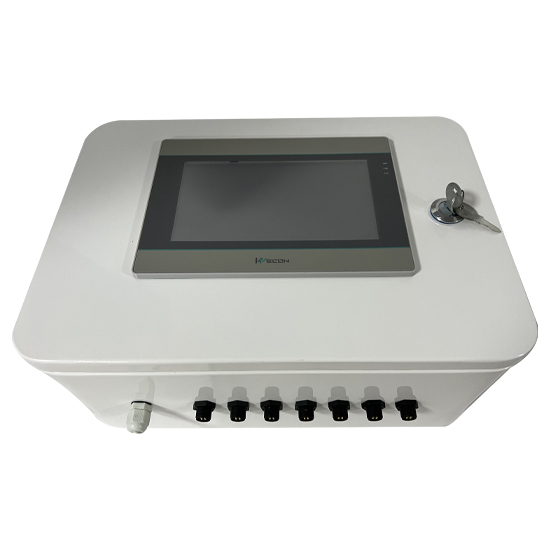

DMC-250 Multi Parameter Monitoring Instrument

Type:Instrument for sensors Specification: 350mm*250mm*150mm Model:DMC-250 OEM:Available MOQ:1PCS Payment:T/T
Inquire Now None
Product Description
Product Description:

DMC-250 is a versatile and convenient monitoring instrument suitable for water treatment, aquaculture, and pipeline monitoring. Data collection wireless transmission integrated waterproof design, simple operation and maintenance.
characteristic:
1. The human-computer interaction interface has simple and convenient menu operations.
2. Remote platform displays data, transparent transmission, precise control, and facilitates management and operation.

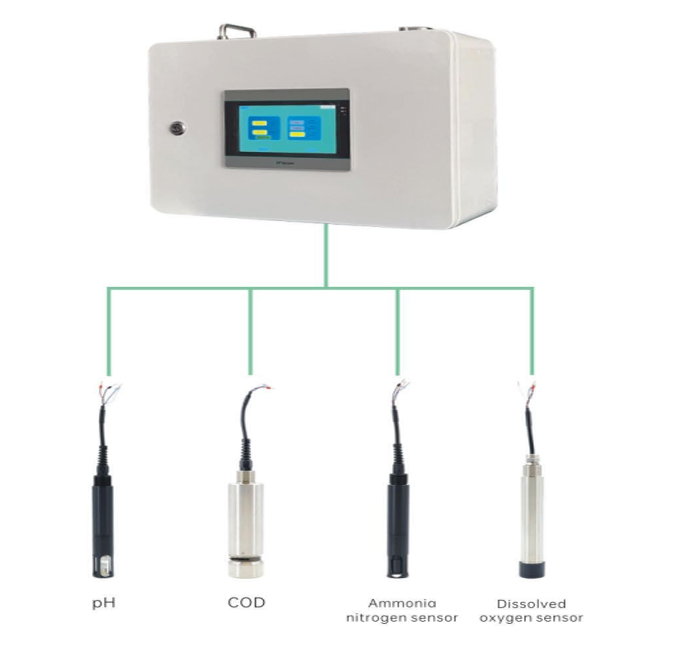

3. It has multi parameter monitoring function and is compatible with various types of sensors (sensor display content can be customized according to customers).
4. Automatic three-point calibration settings (zero point, slope, temperature) and other functions.
5. Low power consumption and multifunctional design. The data acquisition module collects and processes data measured by various digital sensors through the Rs-485 (Modbus/RTU protocol) bus, and wirelessly transmits the data to the cloud. At the same time, sensor measurement values can be obtained on multiple platforms such as mobile apps according to user needs.
Product Name Model Description of technical indicators
Multi parameter monitor DMC-250 1,Real time online monitoring of multiple parameters can be achieved
2,Data storage and alarm functions,4G wireless transmission dual-band 900/1800,baud rate 9600
3,The systems rated power is 1W,the peak power consumption is 3W,the sensor power consumption is 0.3W/piece
4,Size:350mm*250mm*150mm
Power supply unit AC220V to DC24V 2.5V power supply  Default ,multiple power supply
Data processing and sending unit PI3070IG-C (4G) 1,The measurement data is mainly collected and processed through the RS485 (Modbus/RTU Protocol) bus,processed by the singlechip,and send to the wireless module for real time data communication.It is connected to the IOT cloud and records device paramet.
2,Reserve a way RS485 (Modbus/RTU Protocol) interface to facilitate data uploading to the central control room or platform.
External interface composition Standard interface 2.5 andaviation connector 1,Data acquisition interface:Aviation plug,convenient connection,reliable and waterproof
Portable installation  According to the customers needs The monitoring system is softly hung on the side wall
Monitoring platform
Cloud platform,Mobile App







                                Logistics transportation:


FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.


Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .


Q3:How can I get the samples?

A: contact sales to get the samples


Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.


Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
