DCA-210 Calcium ion Analyzer

Type:Water Quality Analyzer Material: APP Plastic Color: Black Model:DCA-210+DMC210 OEM:Available MOQ:1 set

Inquire Now Next Product

Product Description

Product Description:

About DMC-210 Display controller
Basic Function
1. Diverse languages, factory standard Chinese interface, switchable English interface
2.4-20mA output, using isolation technology, strong anti-interference ability
3. The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
4. Password management function to prevent misoperation by non professionals
5. The menu prompt function greatly facilitates user operation
Instrument technical parameters
Temperature compensation: 0-100 ℃ manual/automatic
Signal output: 4-20mA isolated protection output, maximum load 500 Ω
Alarm output: Three groups can correspond to high and low point alarms (3A/250VAC) at will, with normally open contact relays
Power supply: AC220V or DC24V
Power consumption: ≤ 10W
Environmental conditions: (1) Temperature 0-50 ℃ (2) Humidity ≤ 85% RH

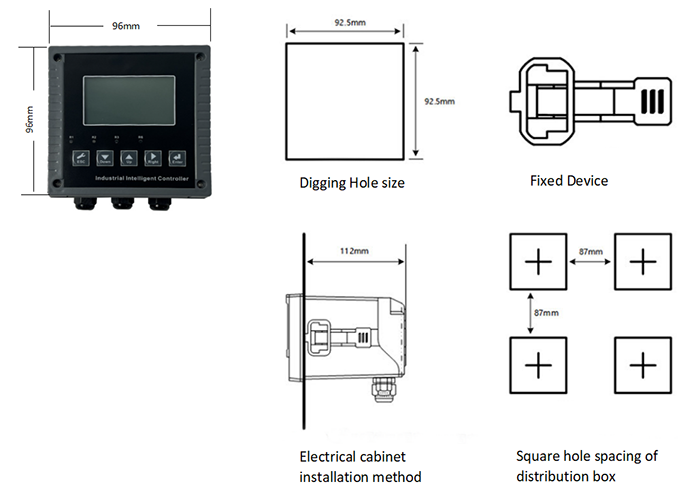

Dimensions: 96 × 96 × 132mm (height × width × depth)
Hole size: 92.5 × 92.5mm (height × width)

Name	Parameter
Power Supply	（Default）AC220V or DC24V（Optional）
Access Signal	The RS485 Digital signal sensor produced by the company supports MODBUS/RTU
Output Signal	4-20mA Isolation protection output，Maximum load 500Ω
Working conditions	Temperature 0-50℃ Humidity ≤85%RH
Level of protection	IP68
Service Life	2 years or more
Sensor housing material	PPS

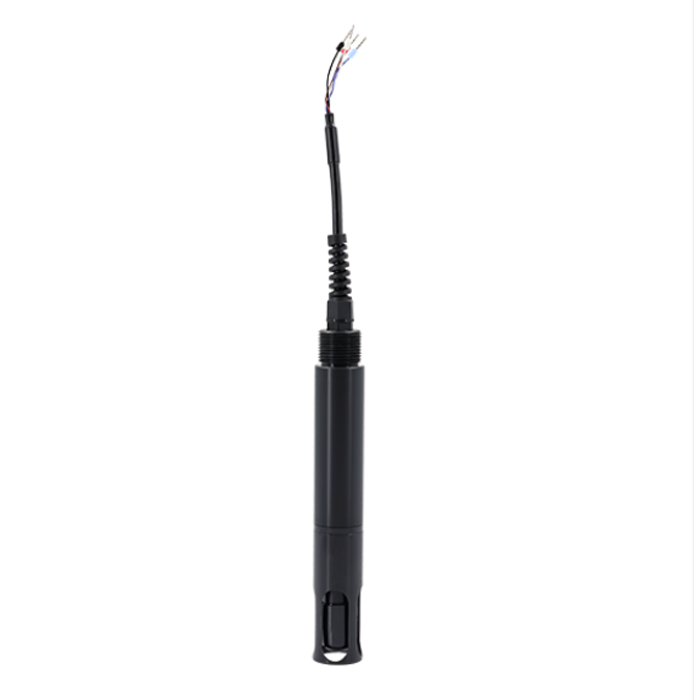

About DCA-210 Calcium ion Sensor

DCA-210 is a basic conventional water quality monitoring digital sensor; Made of industrial online electrodes and PVC membrane calcium ion selective electrodes, it selectively tests the calcium ion content in water with fast response speed and accurate measurement. Built in temperature sensor with automatic temperature compensation, suitable for long-term online monitoring of environmental use.
characteristic:
1. Digital sensor, directly outputs Rs-485 digital signal, supports MODBUS/RTU
2. Built in temperature sensor with automatic temperature compensation
3. The innovative calcium ion membrane head is replaceable, and the maintenance cost of using the replacement membrane head is low
4.3/4 "NPT upper and lower installation thread design for easy installation
5. Low power consumption of sensors and anti-interference design of internal circuits

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
