ODO-210 Dissolved Oxygen Analyzer

Dissolved oxygen analyzer is a key instrument used to measure the oxygen content in water. They are widely used and mainly serve fields such as environmental monitoring, industrial process control, scientific research, and aquaculture. The core content of monitoring is the concentration of dissolved oxygen in water or solution and its related parameters. Type:Water Quality Analyzer Material: 316 Stainless Steel Color: Silver sensor plus balck controller Model:ODO-210+DMC210 OEM:Available MOQ:1 set

Inquire Now None

Product Description

Product Description：

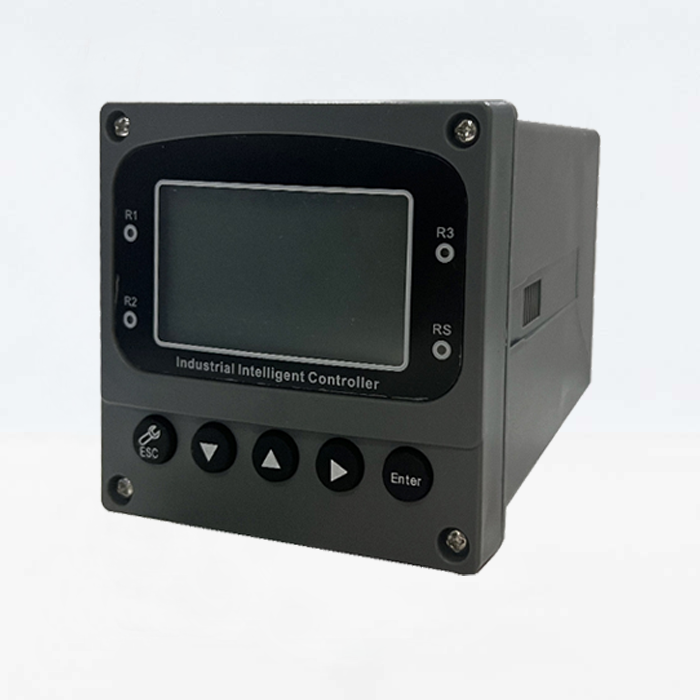

About DMC-210 Display controller
Basic Function
1. Diverse languages, factory standard Chinese interface, switchable English interface
2.4-20mA output, using isolation technology, strong anti-interference ability
3. The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
4. Password management function to prevent misoperation by non professionals
5. The menu prompt function greatly facilitates user operation
Instrument technical parameters
Temperature compensation: 0-100 ℃ manual/automatic
Signal output: 4-20mA isolated protection output, maximum load 500 Ω
Alarm output: Three groups can correspond to high and low point alarms (3A/250VAC) at will, with normally open contact relays
Power supply: AC220V or DC24V
Power consumption: ≤ 10W
Environmental conditions: (1) Temperature 0-50 ℃ (2) Humidity ≤ 85% RH

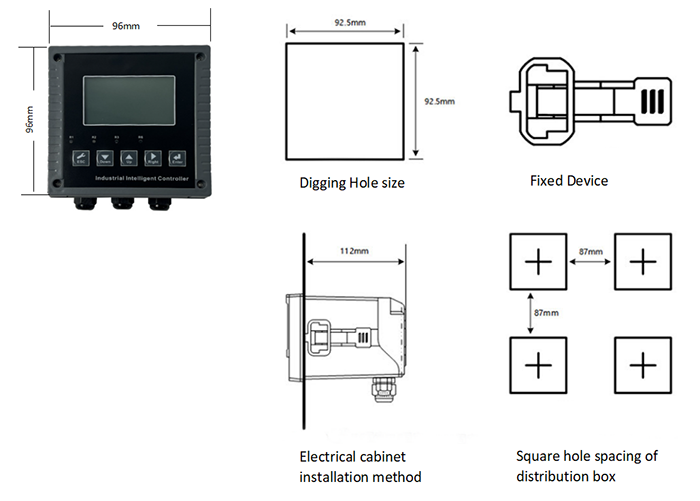

Dimensions: 96 × 96 × 132mm (height × width × depth)
Hole size: 92.5 × 92.5mm (height × width)

Name	Parameter
Power Supply	（Default）AC220V or DC24V（Optional）
Access Signal	The RS485 Digital signal sensor produced by the company supports MODBUS/RTU
Output Signal	4-20mA Isolation protection output，Maximum load 500Ω
Working conditions	Temperature 0-50℃ Humidity ≤85%RH
Level of protection	IP68
Service Life	2 years or more
Sensor housing material	PPS

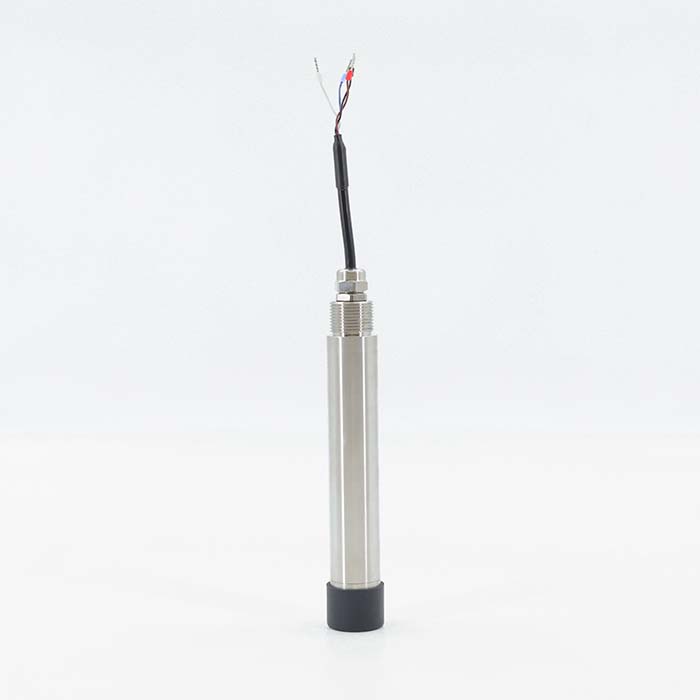

About ODO-210 Dissolved oxygen sensor
Basic Function
The ODO fluorescence dissolved oxygen sensor uses the principle of "dynamic fluorescence quenching" to measure dissolution in water. The thin film at the top of this sensor is covered with a layer of fluorescent material. When the blue light emitted by the light emitting diode (LED) shines on the fluorescent material, it will emit fluorescence when it returns from the excited state to the ground state, which is the test signal. The higher the concentration of dissolved oxygen, the shorter the duration of fluorescence. By testing the duration of fluorescence, the concentration of dissolved oxygen can be calculated. Built in temperature, pressure, and automatic compensation for dissolved oxygen values.
characteristic:
1. Digital sensor, directly outputs Rs-485 digital signal, supports MODBUS/RTU
2. Built in temperature and pressure sensors that can automatically compensate; Built in salinity compensation
3. Optical design, no need to consume electrolyte, measurement does not consume oxygen at the same time
4. Add filter design, resist light source interference, and have good stability
5. No need for preheating, no need for power polarization, fast response speed, up to 40 seconds response time (T90)
6. The fluorescent cap head is easy to replace, with lower maintenance costs and a longer service life
7. Surface anti-corrosion and passivation treatment
8. Low power consumption of sensors and anti-interference design of internal circuits

Name	Parameter
Output Signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	Fluorescence quenching
Range	0-20mg/L (0-200% Saturation)
Accuracy	+-2%F.S. +-5℃
Defence rate	0.01mg/L, 0.1℃
Working conditions	0-45℃ ,<0.2Mpa
Calibration method	Two point calibration
Response time	40 seconds T90
Temperature compensation	Automatic temperature compensation(PT1000)
Power supply	12 or 24VDC +-10%,10mA

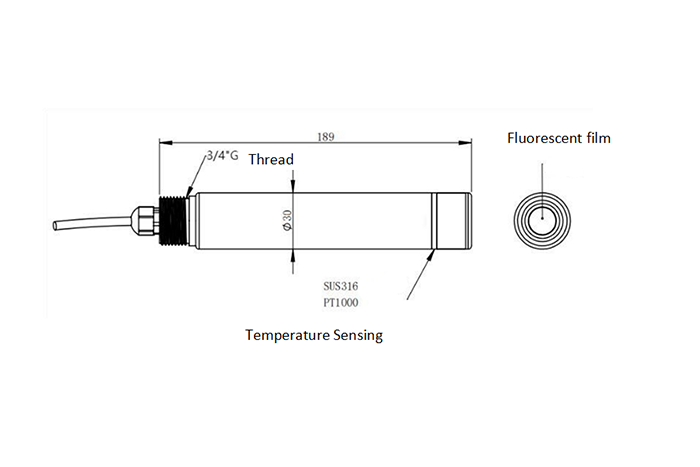

Measurement	Diameter 30mm, Length 189mm
Level of protection	IP68,Water depth 20 meters
Service Life	Sensor 1 year or more,depends
Cable Length	10 meters(Default),Customizable
Sensor Housing material	316 Stainless steel or POM

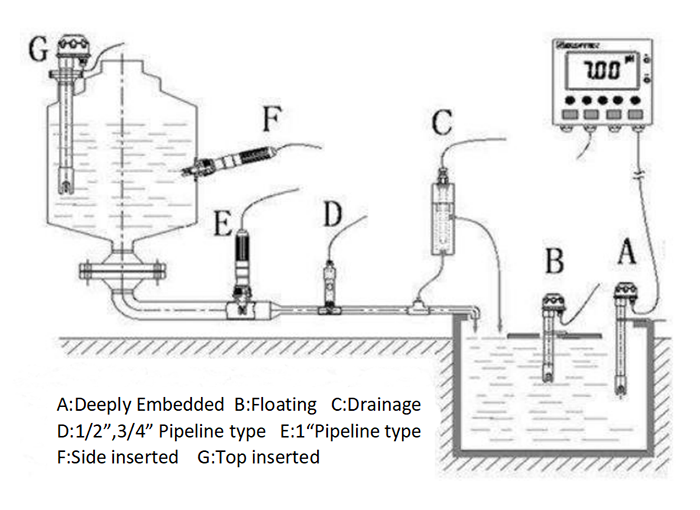

Installation:

How to use Dissolved oxygen Analyzer?
Electrodes are very delicate components and must be installed correctly. Incorrect installation can lead to electrode damage or irreversible damage.
Do not put the electrode directly into the water, should choose the electrode mounting bracket or flow cup fixation.
1. Maintenance: It is recommended to clean the sensor film head attachment every 30 days, and avoid using hard objects to scratch the fluorescent film head during cleaning. Please wipe with a soft damp cloth
2. It is recommended to clean the outer surface of the sensor with water flow. If there are still debris residues, please wipe them with a damp soft cloth
Attention:
The sensor should be installed in areas with slow water flow and no bubbles
1. Do not use sharp objects to scratch the fluorescent film head. Once the fluorescent material falls off, the dissolved oxygen value cannot be accurately measured and the fluorescent film head needs to be replaced.
2. Replace the fluorescent cap. The fluorescent cap is connected to the sensor body by threaded fastening, and a waterproof sealing ring is used in the middle. Do not miss the sealing ring when replacing it.
3. Installation measurement should be avoided in areas with turbulent water flow to reduce the impact of water bubbles on the measurement.
4. For daily storage, when not in use for a long time, please use a protective cover with moist cotton for storage. For long-term dry storage, soak for 48 hours before use.
5. Suggestion: Choose our companys protective cover to prevent microbial attachment from affecting measurement results.

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
