DSS-110 Suspended Solid Analyzer

Type:Water Quality Analyzer Material: ABS Plastic Color: Black Model:DSS-110+DMC210 OEM:Available MOQ:1 set Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

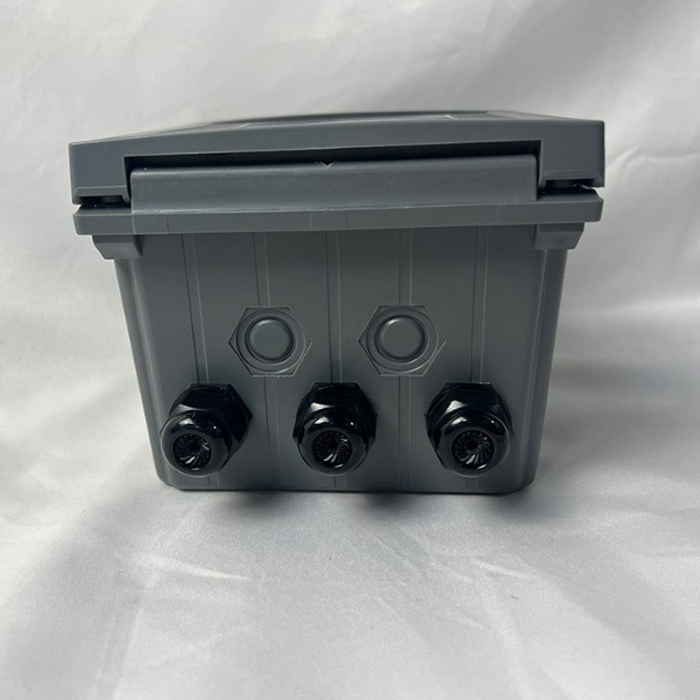

About DMC-210 Display controllerBasic Function
1. Diverse languages, factory standard Chinese interface, switchable English interface
2.4-20mA output, using isolation technology, strong anti-interference ability
3. The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
4. Password management function to prevent misoperation by non professionals
5. The menu prompt function greatly facilitates user operation
Instrument technical parameters
Temperature compensation: 0-100 ℃ manual/automatic
Signal output: 4-20mA isolated protection output, maximum load 500 Ω
Alarm output: Three groups can correspond to high and low point alarms (3A/250VAC) at will, with normally open contact relays
Power supply: AC220V or DC24V
Power consumption: ≤ 10W
Environmental conditions: (1) Temperature 0-50 ℃ (2) Humidity ≤ 85% RH

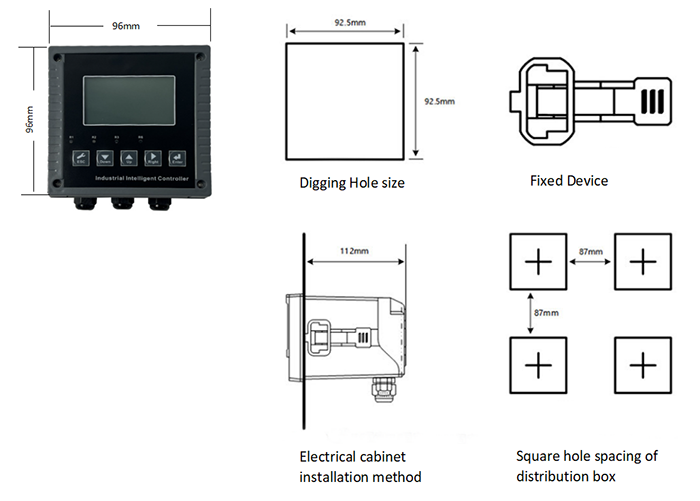

Dimensions: 96 × 96 × 132mm (height × width × depth)
Hole size: 92.5 × 92.5mm (height × width)

	Parameter
Power Supply	（Default）AC220V or DC24V（Optional）
Access Signal	The RS485 Digital signal sensor produced by the company supports MODBUS/RTU
Output Signal	4-20mA Isolation protection output，Maximum load 500Ω
Working conditions	Temperature 0-50℃ Humidity ≤85%RH
Level of protection	IP68
Service Life	2 years or more
Sensor housing material	PPS

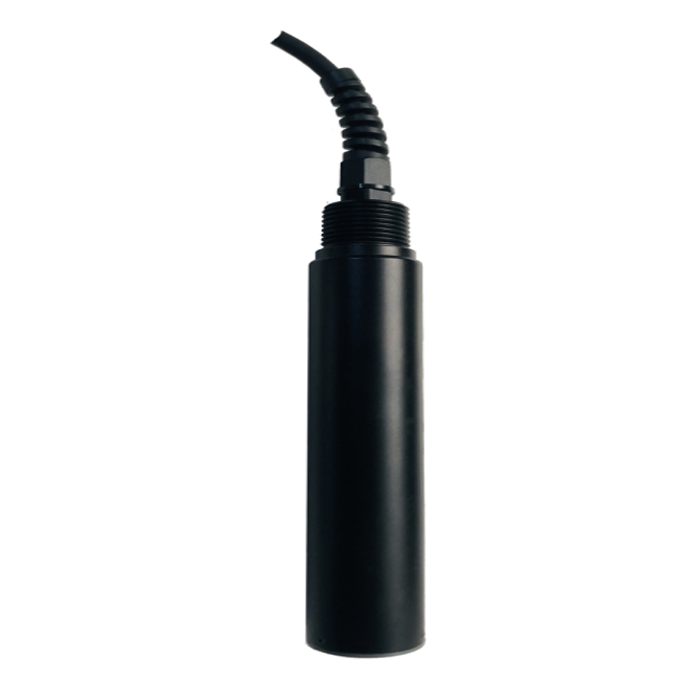

Anout DSS-110 Suspended solid Sensor

The suspended solids (sludge concentration) analyzer is based on infrared scattering light technology, which means that the infrared light emitted by the light source will scatter when passing through the measured sample during transmission, and the intensity of the scattered light is directly proportional to the suspended solids concentration.
The suspended solids (sludge concentration) sensor is equipped with a scattered light receiver in the 90 ° or 180 ° direction, and the suspended solids concentration value is obtained by analyzing the intensity of this scattered light. This product is widely used for monitoring suspended solids/sludge concentration in sewage treatment plants, waterworks, water stations, surface water, aquaculture, industry and other fields.

Name	Parameter
Output signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	135 degrees scattering light method
Range	0-5000mg/L
Accuracy	+-5%F.S. ， +-0.5℃
Defence Rate	0.1mg/L，0.1℃
Working conditions	0-50℃，<0.6Mpa
Calibration method	Two point calibration
Response time	30 Seconds T90
Temperature compensation	Automatic temperature compensation(PT1000)
Power supply	12 or 24VDC +-10%,10mA
Measurement	Diameter 30mm, Length 166.5mm
Level of protection	IP68,Water Depth 20 meters
Service Life	Sensor 3 years or more
Cable Length	10 meters(Default),customizable
Sensor housing material	ABS Plastic

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
