| Parameter | |
| Power Supply | （Default）AC220V or DC24V（Optional） |
| Access Signal | The RS485 Digital signal sensor produced by the company supports MODBUS/RTU |
| Output Signal | 4-20mA Isolation protection output，Maximum load 500Ω |
| Working conditions | Temperature 0-50℃ Humidity ≤85%RH |
| Level of protection | IP68 |
| Service Life | 2 years or more |
| Sensor housing material | PPS |
、| Name | Parameter |

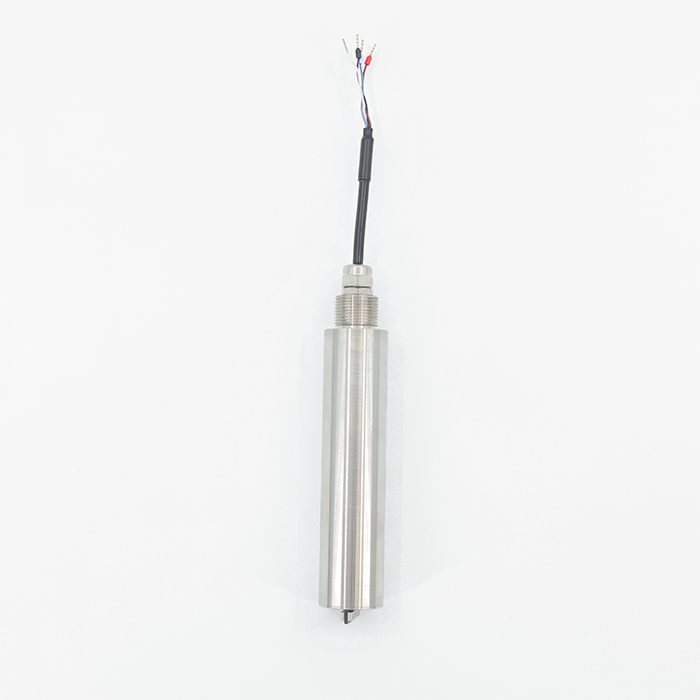

| Range of measurement | 0-400ug/L or 0-100RFU |
| Sub office rate | 0.1ug/L |
| Level of protection | IP68 |
| The deepest Depth | 20 meters underwater |
| Temperature fanyuan | 0-50℃ |
| Sensor interface | Support RS485,Modbus protocol |
| Power supply | DC12V +-20%,Current<30mA,(non cleaning) |
| Diameter of the shell | 38*181.5mm |
| Service life | Sensors for 3 years or more,depends |
| Cable Length | 10 meters,other length can be customized |
| Power consumption | <1W |
| Shell material | 316 stainless steel |
Q1:Are you factory or trading company?
A: We are a manufacture with independent import and export rights.
Q2:How is the quality of your products?
A: Lotus is a manufacturer with production for more than 6 years,We have a complete production
management system and Independent laboratory for testing equipment with a high product
qualification rate .
Q3:How can I get the samples?
A: contact sales to get the samples
Q4:what’s the Minimum order Quantity and Payment?
A1: Payment:EXW,FOB,CFR,CIF,etc.
A2:Minimum：trial order is also available,but with sample price.
Q5:what’s your Lead time?
A: As the General size have stock with fast delivery,the customized size need to negotiate mostly
within 15days.
