COD-210 COD Water quality Analyzer

COD (Chemical Oxygen Demand) sensor is one of the core devices for water pollution monitoring, used to quickly assess the pollution level of organic and inorganic reducing substances in water bodies. It indirectly reflects the comprehensive intensity of water pollution caused by reducing substances (especially organic pollutants) by measuring the oxygen equivalent consumed when water samples are oxidized by strong oxidants under specific conditions. Type:Water Quality Analyzer Material: 316 Stainless Steel Color: Silver sensor plus balck controller Model:COD-210+DMC210 OEM:Available MOQ:1 set Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

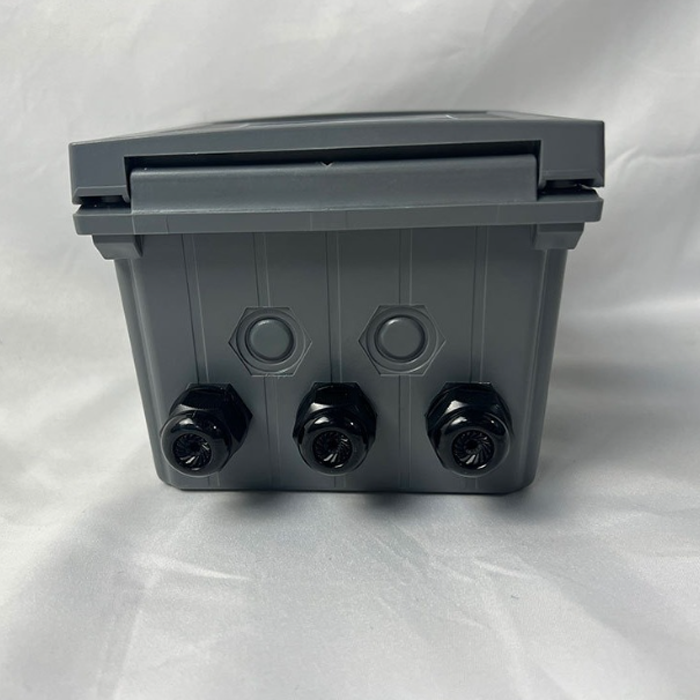

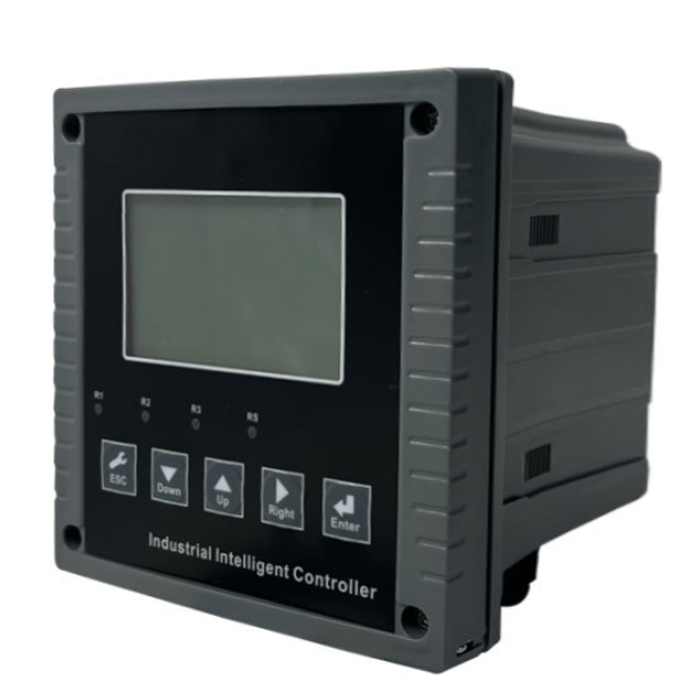

About DMC-210 Display controller
Basic Function
1. Diverse languages, factory standard Chinese interface, switchable English interface
2.4-20mA output, using isolation technology, strong anti-interference ability
3. The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
4. Password management function to prevent misoperation by non professionals
5. The menu prompt function greatly facilitates user operation
Instrument technical parameters
Temperature compensation: 0-100 ℃ manual/automatic
Signal output: 4-20mA isolated protection output, maximum load 500 Ω
Alarm output: Three groups can correspond to high and low point alarms (3A/250VAC) at will, with normally open contact relays
Power supply: AC220V or DC24V
Power consumption: ≤ 10W
Environmental conditions: (1) Temperature 0-50 ℃ (2) Humidity ≤ 85% RH

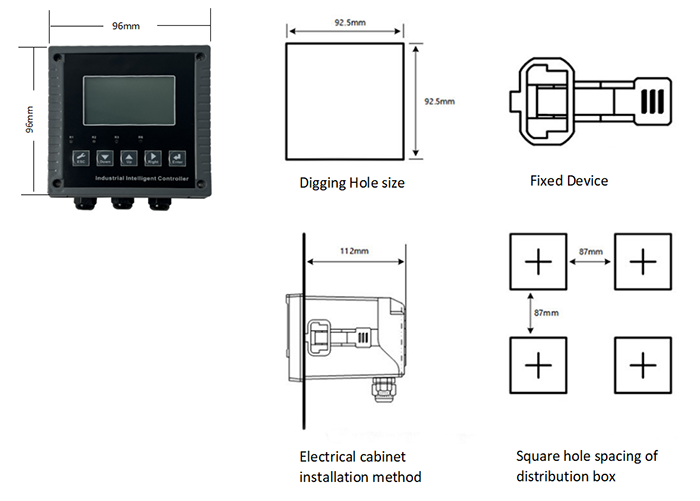

Dimensions: 96 × 96 × 132mm (height × width × depth)
Hole size: 92.5 × 92.5mm (height × width)

Name	Parameter
Power Supply	（Default）AC220V or DC24V（Optional）
Access Signal	The RS485 Digital signal sensor produced by the company supports MODBUS/RTU
Output Signal	4-20mA Isolation protection output，Maximum load 500Ω
Working conditions	Temperature 0-50℃ Humidity ≤85%RH
Level of protection	IP68
Service Life	2 years or more
Sensor housing material	PPS

About COD Sensor

COD-210 is a new type of UV254 COD sensor introduced by DAO Yi, using ultraviolet absorption method, bringing together the industrys many years of application development experience, the sensor is small in size, integrated internal self-cleaning, the surface is treated with anti-corrosion treatment; the reaction analysis speed is fast, no chemical reagents are required, the use of deep UV LED cold light source imported from abroad, the luminescence measurement life is long, while the use of 550nm compensation light source, effectively eliminating the effect of turbidity and chromatography on the sensor measurement, with higher reliability.
Features:
1. Digital sensor, direct output of Rs-485 digital signal, support MODBUS/RTU
2. Dual optical path measurement; 254nm and 550nm compensated light source to eliminate turbidity and chromaticity effects
3. Imported UV254 LED cold light source, long life, small drift; filter film design, small interference, stable
4. Can measure parameters such as COD, TOC, turbidity and temperature, without chemical reagents and sample decomposition
5. Small size, internal integrated automatic cleaning brush, effectively prevent biological adhesion;
6. Surface for anti-corrosion passivation treatment
7. Low sensor power consumption, internal circuit anti-interference design

Name

Parameter

Output signal

Support RS-485,MODBUS/RTU Protocol

Measurement method

UV254 absorption method

COD Range

0.3-500mg/L equiv.KHP

COD accuracy

+5%F.S. qe==equiv.KHP

COD Defence rate

0.1mg/L or 0.01mg/L equiv.KHP

Turbidity measurement range

0-100 NTU

Repeatability

+-1%f.s. equiv.KHP

Working conditions

0.1-50 degree Celsius,<0.1Mpa

Calibration method

TWO point calibration

Response Time

10 seconds T90

Power supply

12 or 24VDC +- 10%, 15mA, 200mA motor start

Measurement

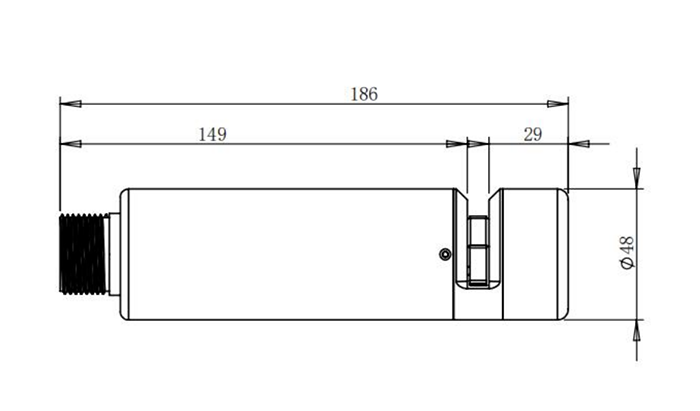

Dia:48mm,length:186mm

Level of protection

IP68 water depth 10m

Flow rate

Less than 3m/s

Service Life

3 year above,brush:18 months

Cable length

10 meters(standard) can be customized

Sensor housing material

316L stainless steel or POM

Maintenance frequency
Sensor 3 months,brush:6months

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
