DTS-220 Self Cleaning Turbidity Analyzer

Self Cleaning Turbidity Analyzer is an instrument used to measure the degree of turbidity in water bodies, quantifying water clarity by detecting the scattering or transmission effects of suspended particles in water on light. Its application areas and monitoring content are closely related to water transparency, particulate matter content, and water quality safety. Widely used in drinking water treatment and safety monitoring, wastewater treatment, environmental water monitoring, industrial process control, aquaculture and other fields. Type:Water Quality Analyzer Material: 316 Stainless Steel Color: Silver sensor plus balck controller Model:DTS-220+DMC210 OEM:Available MOQ:1 set

Inquire Now Next Product

Product Description

Product Description:

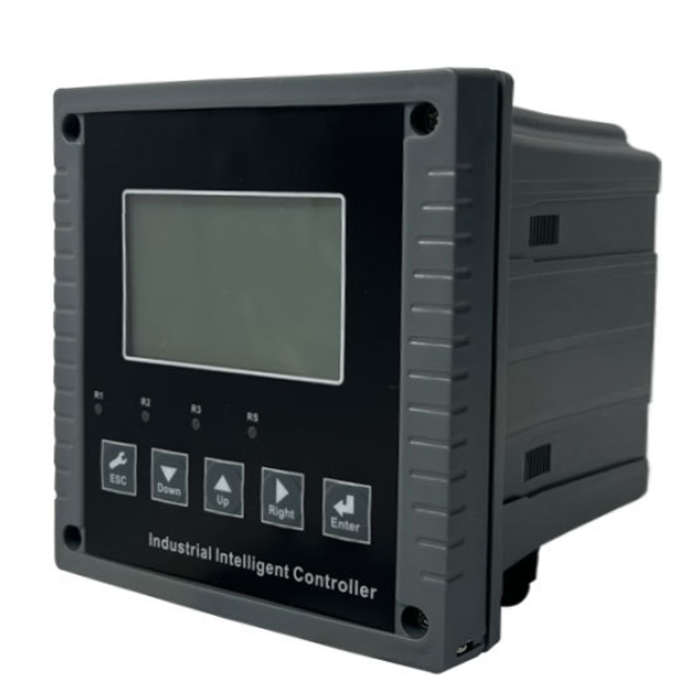

About DMC-210 Display controller
Basic Function
1. Diverse languages, factory standard Chinese interface, switchable English interface
2.4-20mA output, using isolation technology, strong anti-interference ability
3. The high and low points of the three sets of relays can be switched freely, and the hysteresis can be adjusted freely to avoid frequent on-off of the relays
4. Password management function to prevent misoperation by non professionals
5. The menu prompt function greatly facilitates user operation
Instrument technical parameters
Temperature compensation: 0-100 ℃ manual/automatic
Signal output: 4-20mA isolated protection output, maximum load 500 Ω
Alarm output: Three groups can correspond to high and low point alarms (3A/250VAC) at will, with normally open contact relays
Power supply: AC220V or DC24V
Power consumption: ≤ 10W
Environmental conditions: (1) Temperature 0-50 ℃ (2) Humidity ≤ 85% RH
Dimensions: 96 × 96 × 132mm (height × width × depth)
Hole size: 92.5 × 92.5mm (height × width)

Name	Parameter
Power Supply	（Default）AC220V or DC24V（Optional）
Access Signal	The RS485 Digital signal sensor produced by the company supports MODBUS/RTU
Output Signal	4-20mA Isolation protection output，Maximum load 500Ω
Working conditions	Temperature 0-50℃ Humidity ≤85%RH
Level of protection	IP68
Service Life	2 years or more
Sensor housing material	PPS

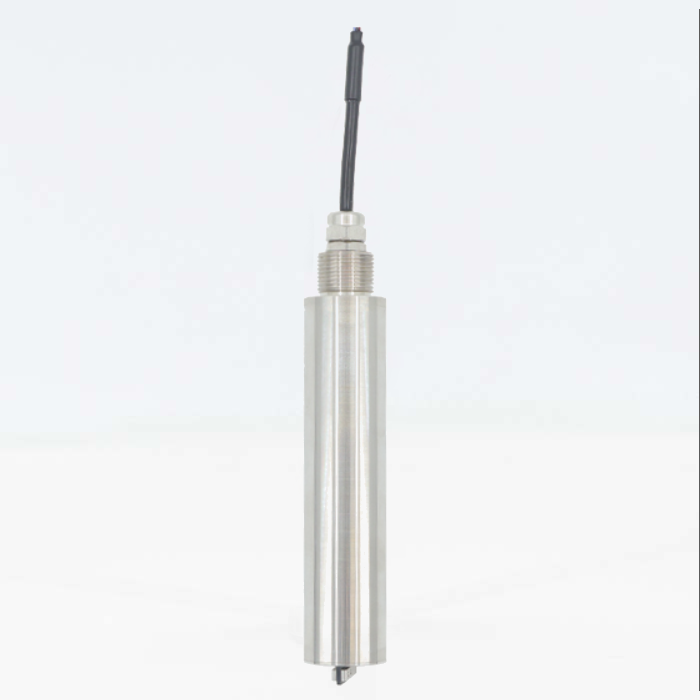

About DTS-220 Self cleaning Turbidity Sensor

DTS-220 is a basic conventional water quality monitoring digital turbidity sensor; Adopting the mature 90 degree scattered light principle from abroad, using the design method of infrared LED light source and fiber optic transmission optical path; Internally added filter design, with strong resistance to external light interference. Built in temperature sensor with automatic temperature compensation, suitable for long-term online monitoring of environmental use.
characteristic:
1. Digital sensor, directly outputs Rs-485 digital signal, supports MODBUS/RTU
2. 90 degree angle scattered light principle, built-in temperature can automatically compensate;
3. Fiber optic structure with strong resistance to external light interference
4. Infrared LED light source, with added filter design, resistant to light source interference, and good stability
5. Surface anti-corrosion and passivation treatment
6. Low power consumption of sensors and anti-interference design of internal circuits

Name	Parameter
Output Signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	90℃ Scattering light method
Range	0-200 NTU，0-1000NTU，or 0-3000 NTU
Accuracy	+-3% display value or +-2NTU，the largest （0-200NTU） +-5% display value or +-3NTU，the largest（0-2000NTU） +-5% display value or +-10NTU，the largest（0-3000NTU） +-3°℃
Defence rate	0.1NTU,0.1°℃
Working conditions	0-50°℃ ，<0.6Mpa
Calibration method	Two point calibration
Response time	30 seconds T90
Temperature compensation	Automatic temperature compensation(PT-1000)
Power supply	12 or 24VDC,+-10%,10mA

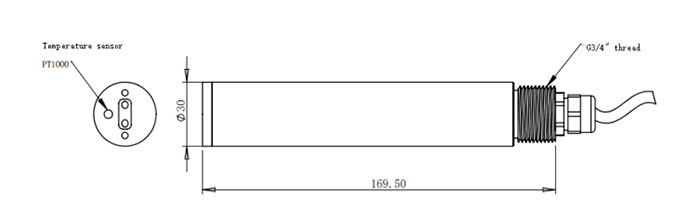

Measurement	Diameter 30mm,Length 169.5mm
Level of protection	IP68,water depth 20 meters
Service Life	Sensor 3 years or more,depends
Cable Length	10 meters(default),customizable
Sensor housing material	316 stainless steel or POM

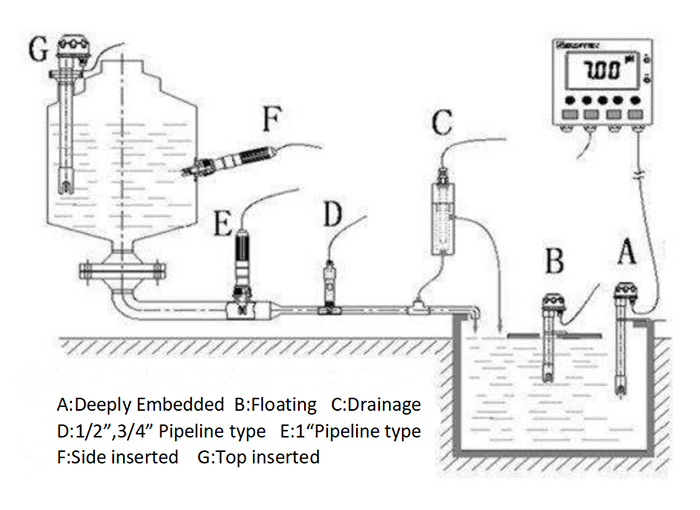

How to use Turbidity Analyzer?
Electrodes are very delicate components and must be installed correctly. Incorrect installation can lead to electrode damage or irreversible damage.

The sensor is installed in the area without slow water flow; the sensor is maintained 5 cm from the surrounding wall.

1. Maintenance:
It is recommended to clean the sensor every 30 days; avoid scratching the sensor during cleaning; please wipe with a soft wet cloth.It is recommended to clean the outer surface of the sensor with water flow. If there is still debris, wipe it with a wet soft cloth.

2.Installation measurement: Avoid installation measurement in the rapid current, and reduce the impact of current bubbles on the measurement. Keep the measuring probe 5 cm away from the bottom.Suggestion: Select the company protective cover to prevent microbial attachment from affecting the measurement results.
