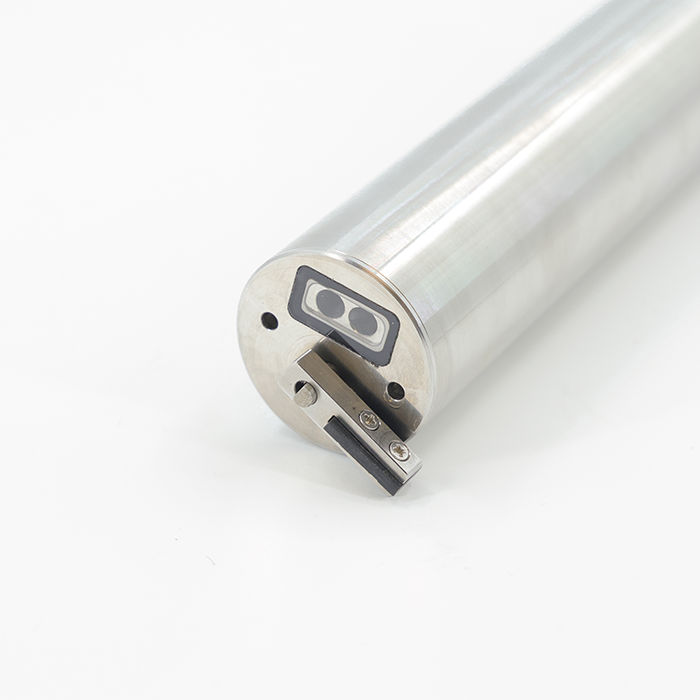

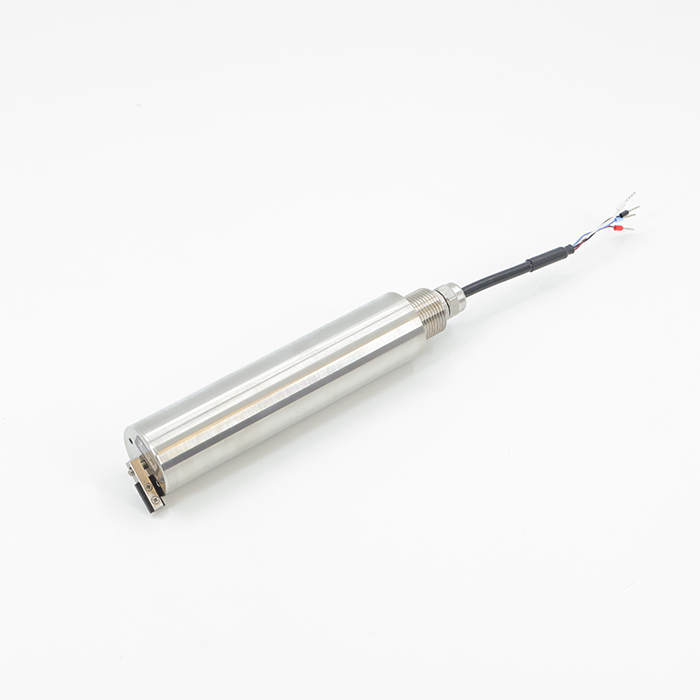

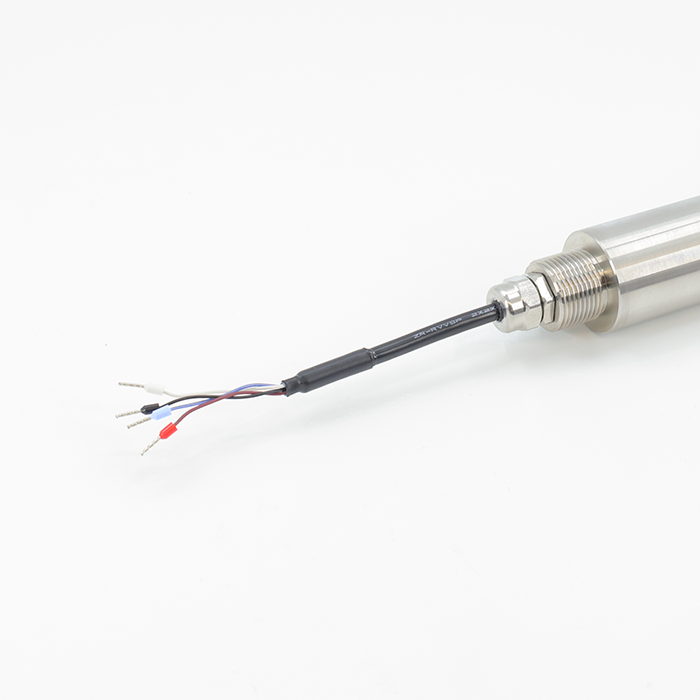

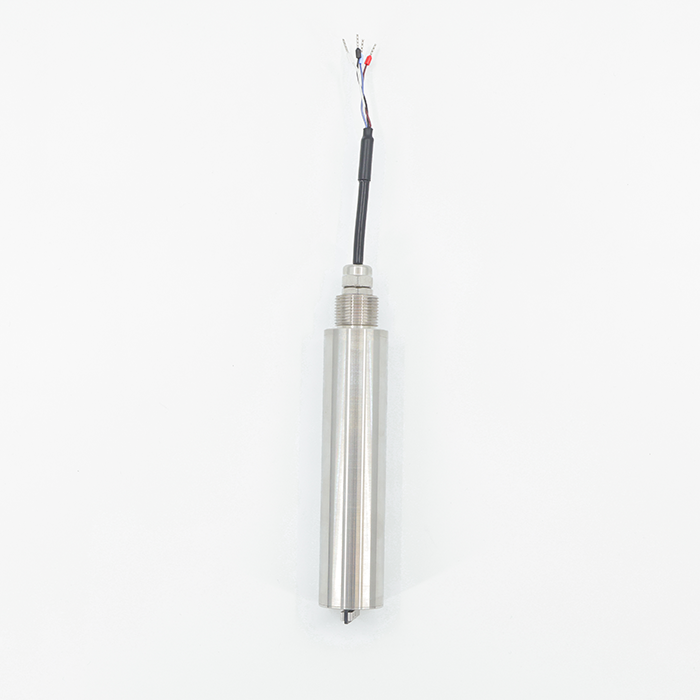

Oil-210 Self Cleaning Water Oil Sensor

Type:Water Quality Sensor Specification: diameter 42mm; length 186.5mm Material: 316 stainless steel Color: Silver Model: OIL-210 OEM:Available MOQ:1PCS Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

Oil-210 is a basic conventional water quality monitoring digital online water oil sensor,commonly used water oil detection has suspension method (D/A<=1），infrared spectrophotometric method(not suitable for low range),ultraviolet spectrophotometric method(not suitable for high range),etc. The online water oil sensor adopts the principle of fluorescence method. Compared with several commonly used method,the fluorescence method is more efficient,fast and repeatable,and can be monitored online in real time.The sensor has better repeatability and stability.With an automatic cleaning brush,it can eliminate bubbles,reduce the impact of contamination on measurement,make the maintenance cycle longer,and maintain excellent stability for long term online use.It can play an early warning role in the pollution of oil in the water.

Name	Parameter
Output signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	Ultraviolet fluorescence method
Range	0-50ppm
Accuracy	+-5% F.S.
Defence rate	0.01ppm
Working conditions	0-50℃,<0.6Mpa
Calibration method	Two point calibration
Response time	30 Seconds T90
Temperature compensation	Automatic temperature compensation(PT1000)
Power supply	DC12V +-20%,Current<30mA(non cleaning)
Measurement	Diameter 38mm,length 181.5mm
Level of protection	IP68,Water depth 10 meters
Service life	Sensor 3 years or more,depends
Cable length	10 meters(default),customizable
Sensor housing material	316L stainless steel
Self cleaning system	Have
