DMS-600 Multi Parameter Sensor

Type:water quality sensor Material:PVC or 360L stainless steel Color:Black, Silver Model:DMS-600 OEM:Available MOQ:1PCS Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

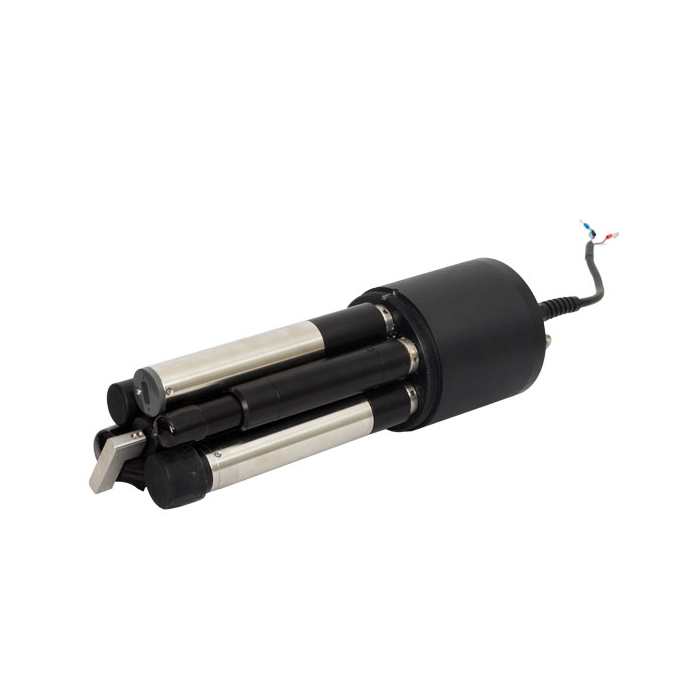

DMS-600 online multi parameter self-cleaning digital sensor, integrated design, reliable and easy to use product. Up to 7 parameters can be measured simultaneously, and sensor types can be selected including dissolved oxygen pH、ORP、 Conductivity/salinity, ammonia nitrogen, turbidity, etc., sensors can be freely selected and replaced, using RS-485 bus, Modbus/RTU communication protocol, and data can be directly transmitted to the acquisition platform.
The online multi parameter water quality sensor is equipped with an automatic cleaning device, which is smaller in size compared to the same industry. The cleaning time and frequency can be set through a protocol to adapt to different levels of water quality. The automatic cleaning device can effectively clean the surface of the sensor, prevent microbial adhesion, and greatly reduce maintenance costs. Each sensor is equipped with a quick plug waterproof connector, which is easy to disassemble and assemble.

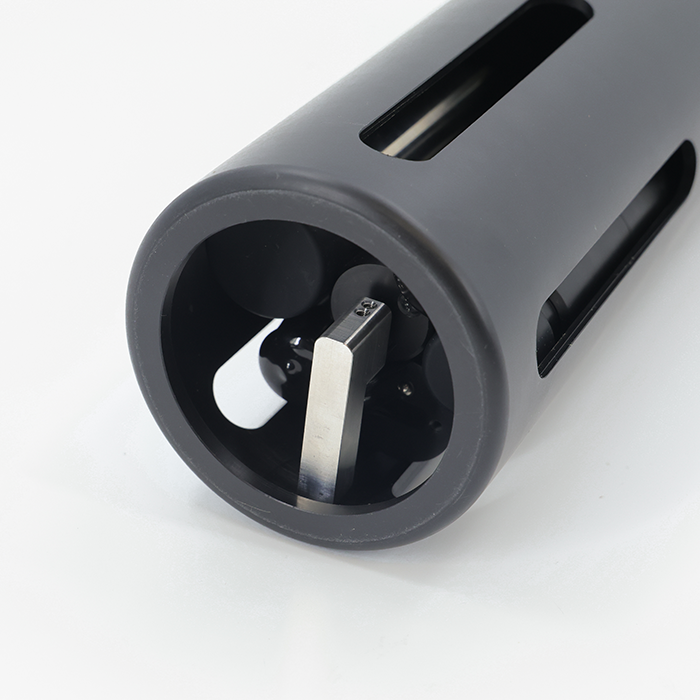

The front end sensor protective cover is used to protect the internal sensors from damage. The protective cover has slots around it, which can effectively prevent large suspended particles and organisms from damaging the sensor probe, while not affecting the accuracy of measurement.
characteristic:
Integrated design, capable of simultaneously integrating 7 monitoring parameters;
Digital sensor, RS-485 bus, Modbus/RTU communication protocol.
Equipped with an automatic cleaning device.
Optional digital sensors for dissolved oxygen, conductivity/salinity, turbidity, ammonia nitrogen, pH, ORP, etc., suitable for long-term online monitoring. Parameters can be freely combined.

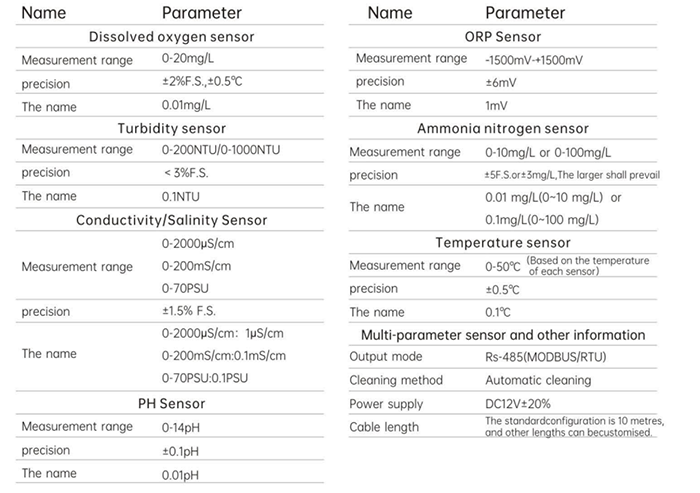

Name	Parameter
Dissloved oxygen sensor
Measurement range	0-20mg/L
Precision	+-2%F.S. +-0.5℃
resolution	0.01mg/L
Turbidity sensor
Measurement range	0-200NTU/0-1000NTU
Precision	<3%F.S.
resolution	0.1NTU
Conductivity/Salinity sensor
Measurement range	0-2000Us/cm,0-200Ms/cm,0-70PSU
Precision	+-1.5%F.S.
resolution	0-2000Us/cm, 1Us/cm 0-200Ms/cm,0.1Ms/cm 0-70PSU,0.1PSU
PH Sensor
Measurement range	0-14pH
Precision	+-0.1pH
resolution	0.01pH
ORP Sensor
Measurement range	-1500mv to +1500mv
Precision	+-6mv
resolution	1mv
Ammonia nitrogen sensor
Measurement range	0-10mg/L or 0-100mg/L
Precision	+-5F.S. or +-3mg/L,the larger shall prevail
resolution	0.01mg/L(0-10mg/L) or 0.1mg/L(0-100mg/L)
Temperature sensor
Measurement range	0-50℃ based on the temperature of each sensor
Precision	+-0.5℃
resolution	0.1℃
Multi parameter sensor and other info.	Support RS-485 MODBUS/RTU protocol
Power supply	12VDC ,cable length 10 meters default
cleaning method	automatic cleaning

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
