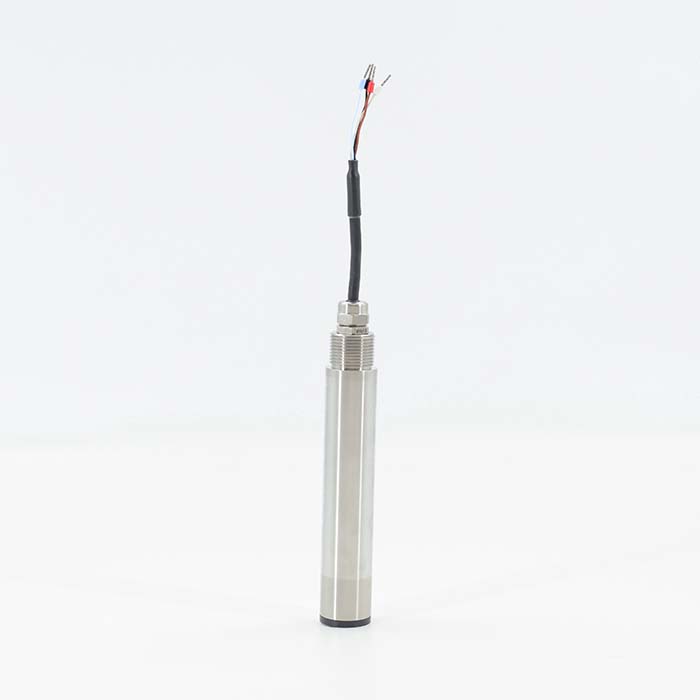

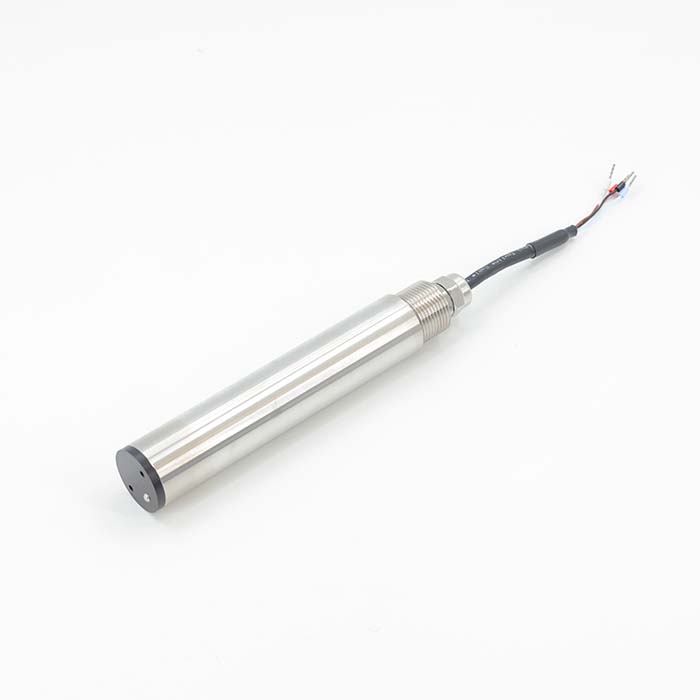

DSS-210 Suspended Solid Sensor

Type:Water Quality Sensor Material: POM or 316L stainless steel Color: Black, Silver Model DSS-210 OEM:Available MOQ:1PCS Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

The suspended solids (sludge concentration) sensor is based on infrared scattering light technology, which means that the infrared light emitted by the light source will scatter when passing through the measured sample during transmission, and the intensity of the scattered light is directly proportional to the suspended solids concentration.

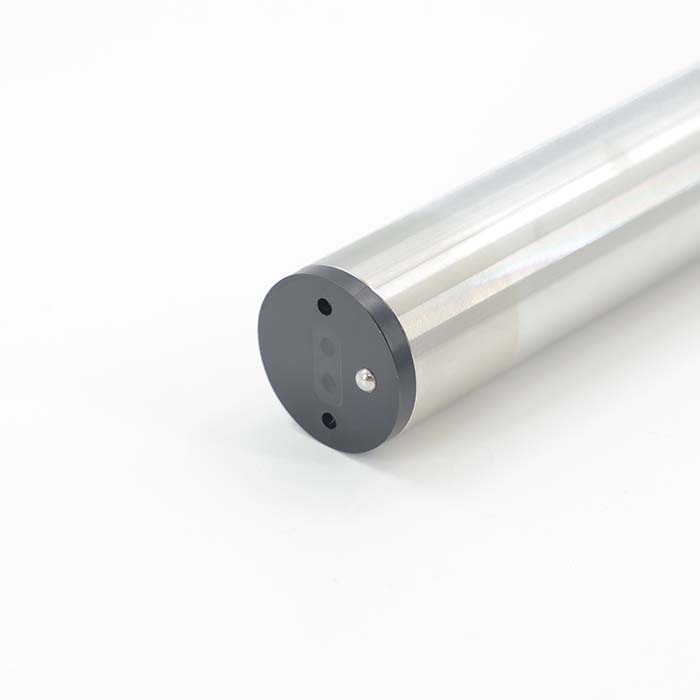

The suspended solids (sludge concentration) sensor is equipped with a scattered light receiver in the 90 ° or 180 ° direction, and the suspended solids concentration value is obtained by analyzing the intensity of this scattered light. This product is widely used for monitoring suspended solids/sludge concentration in sewage treatment plants, waterworks, water stations, surface water, aquaculture, industry and other fields.

Suspended solid sensor is an instrument used to monitor the concentration of suspended particles in water, which can be applied in multiple fields, mainly including:
1. Water quality monitoring: Suspended solids sensors are widely used in water quality monitoring of surface water, groundwater, industrial water, and wastewater. They monitor the concentration of suspended particulate matter in water bodies, evaluate the clarity of water quality, and promptly detect pollution problems.

2. Water treatment: During the water treatment process, suspended solids sensors can help monitor and control the efficiency of removing suspended particles, ensuring that the treated water quality meets the specified standards.

3. Industrial circulating water: In the industrial production process, the use of suspended solids sensors in the circulating water system can monitor and control suspended particles in the circulating water to maintain the normal operation of the system and extend the service life of equipment.

4. Environmental protection and pollution source management: Suspended matter sensors provide real-time data to environmental protection departments, helping to regulate water pollution and effectively control pollution sources.

5. Scientific research: In the field of scientific research, suspended solids sensors can be used to analyze water samples in the laboratory to obtain accurate suspended solids concentration data.

Name	Parameter
Output signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	135 degrees scattering light method
Range	0-5000mg/L
Accuracy	+-5%F.S. ， +-0.5℃
Defence Rate	0.1mg/L，0.1℃
Working conditions	0-50℃，<0.6Mpa
Calibration method	Two point calibration
Response time	30 Seconds T90
Temperature compensation	Automatic temperature compensation(PT1000)
Power supply	12 or 24VDC +-10%,10mA
Measurement	Diameter 30mm, Length 166.5mm
Level of protection	IP68,Water Depth 20 meters
Service Life	Sensor 3 years or more

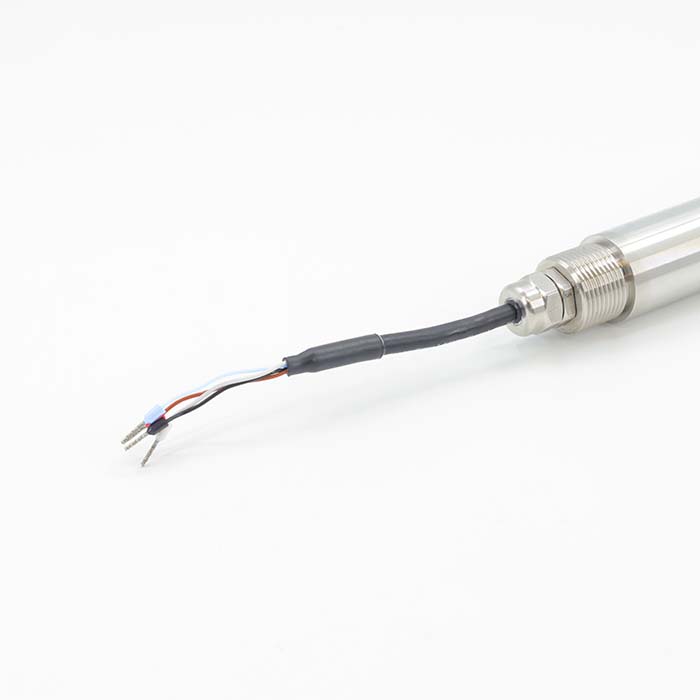

Cable Length	10 meters(Default),customizable
Sensor housing material	316L stainless steel

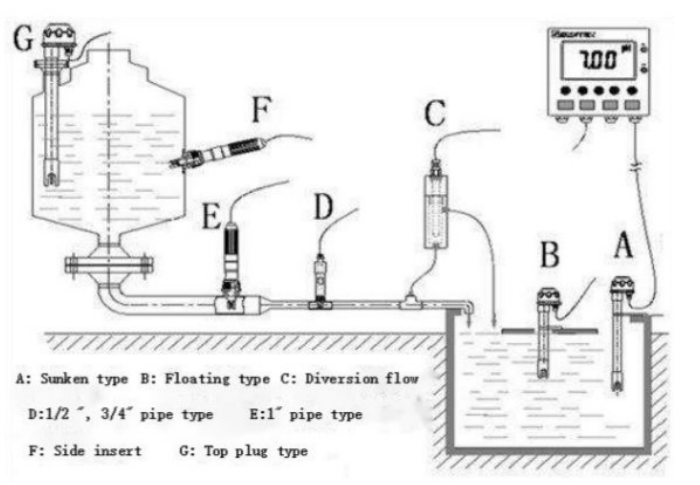

Installation：

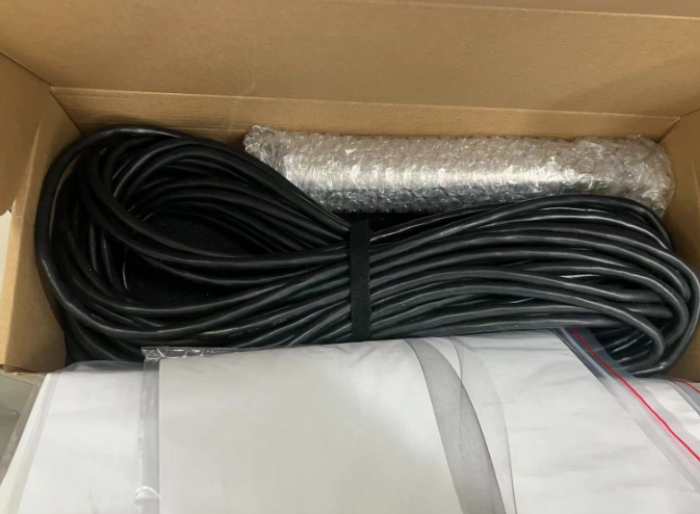

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
