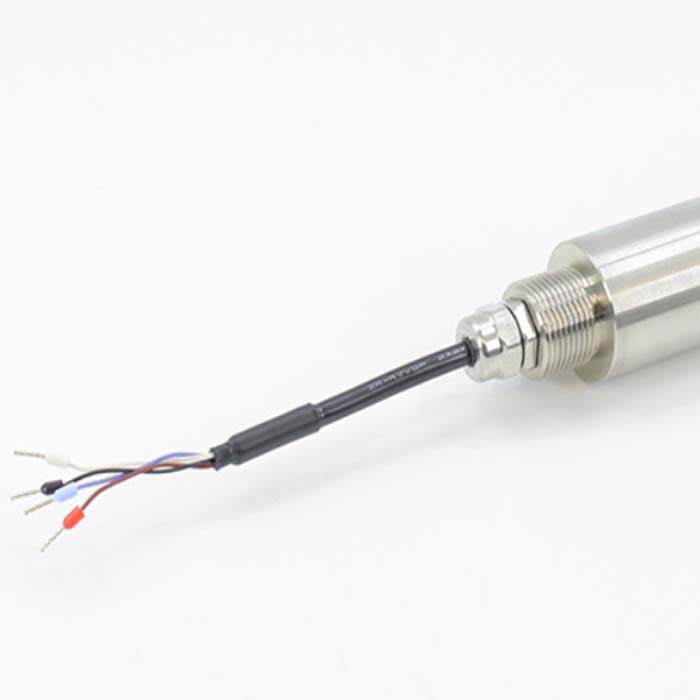

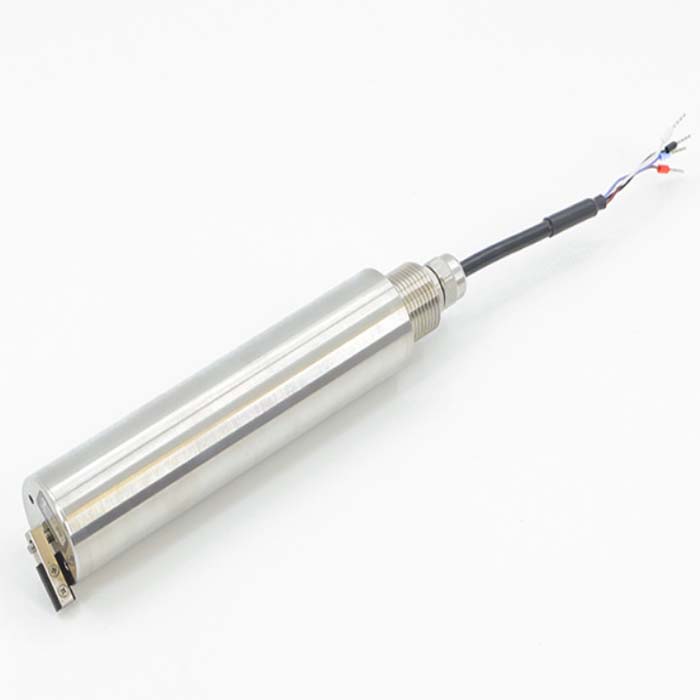

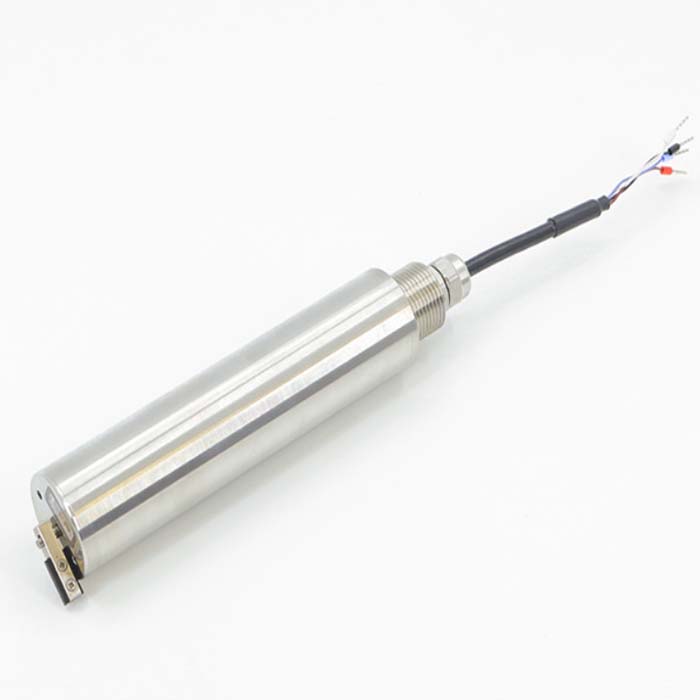

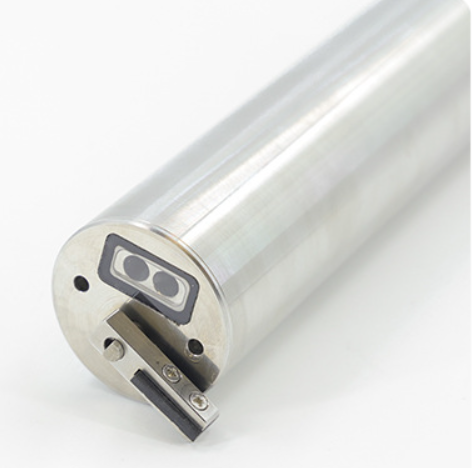

DTS-220 Self cleaning Turbidity Sensor

6. Low power consumption of sensors and anti-interference design of internal circuits

Name	Parameter
Output Signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	90℃   Scattering light method
Range	0-200 NTU，0-1000NTU，or 0-3000 NTU
Accuracy	+-3% display value or +-2NTU，the largest （0-200NTU） +-5% display value or +-3NTU，the largest（0-2000NTU） +-5% display value or +-10NTU，the largest（0-3000NTU） +-3°℃
Defence rate	0.1NTU,0.1°℃
Working conditions	0-50°℃ ，<0.6Mpa
Calibration method	Two point calibration
Response time	30 seconds T90
Temperature compensation	Automatic temperature compensation(PT-1000)
Power supply	12 or 24VDC,+-10%,10mA
Measurement	Diameter 30mm,Length 169.5mm
Level of protection	IP68,water depth 20 meters
Service Life	Sensor 3 years or more,depends
Cable Length	10 meters(default),customizable
Sensor housing material	316 stainless steel or POM

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
