Our turbidity sensors are widely applied in these key sectors:
Drinking Water & Wastewater Treatment: Precisely monitor sedimentation tank efficiency, filter backwash endpoints, and final effluent quality to ensure 100% compliance with environmental regulations.
Industrial Process Control: In industries like Food & Beverage, Pharmaceuticals, and Chemicals, provide real-time monitoring of CIP (Cleaning-in-Place) processes, product purity, and cooling water circuits to prevent scaling and corrosion, guaranteeing product consistency.
Environmental Monitoring & Early Warning: Used for continuous monitoring of rivers, lakes, and outfalls, providing timely alerts for sudden water quality changes and enabling rapid response for environmental protection.
Aquaculture & Fisheries: Maintain optimal water clarity to ensure aquatic health and increase stock density and survival rates.
Why Choose Our Solution?
Unmatched Accuracy: Advanced optical technology offers strong anti-interference capabilities and stable readings, delivering exceptional performance even in extreme low or high turbidity conditions.
Rugged Durability: Constructed with full industrial-grade materials and an IP68 rating, resistant to corrosion and high pressure, built to withstand harsh environments and continuous operation.
Seamless Integration: Supports various industrial standard outputs (4-20mA, Modbus, etc.) for easy integration into your PLC, DCS, or SCADA systems, enabling smart management.
Easy Maintenance: Innovative design significantly reduces cleaning frequency; optional self-cleaning features minimize maintenance effort and total lifecycle cost.
Call to Action:
Contact our expert team today to find the ideal turbidity monitoring solution for your industry and start a new chapter of efficient, compliant, and safe water management!
| Name | Parameter |
| Output Signal |
Support RS-485,MODBUS/RTU Protocol |
|
Measurement method |

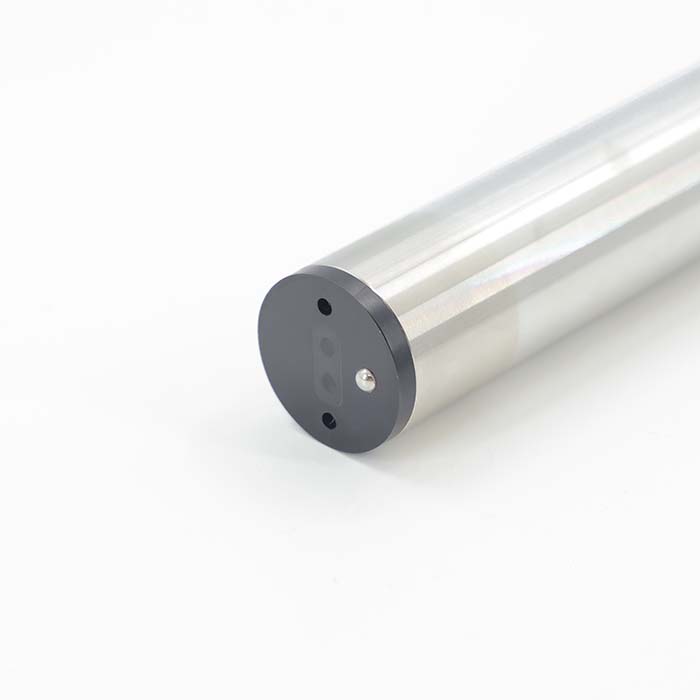

90°℃ Scattering light method |
| Range | 0-200 NTU，0-1000NTU，or 0-3000 NTU |
| Accuracy |
+-3% display value or +-2NTU，the largest （0-200NTU） +-5% display value or +-3NTU，the largest（0-2000NTU） +-5% display value or +-10NTU，the largest（0-3000NTU） +-3°℃ |
| Defence rate |
0.1NTU,0.1°℃ |
| Working conditions |
0-50°℃ ，<0.6Mpa |
| Calibration method | Two point calibration |
| Response time | 30 seconds T90 |
| Temperature compensation | Automatic temperature compensation(PT-1000) |
| Power supply | 12 or 24VDC,+-10%,10mA |

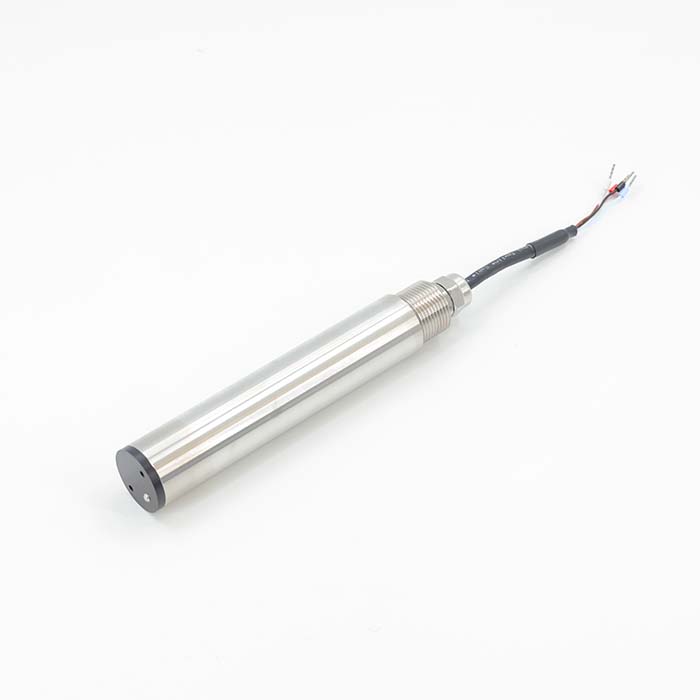

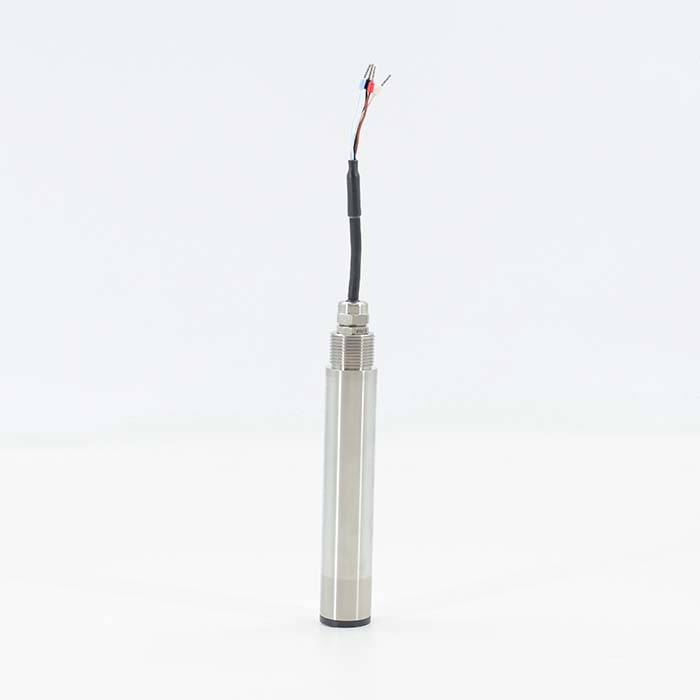

| Measurement | Diameter 30mm,Length 169.5mm |
| Level of protection | IP68,water depth 20 meters |
| Service Life | Sensor 3 years or more,depends |
| Cable Length | 10 meters(default),customizable |
| Sensor housing material | 316 stainless steel or POM |
Q1:Are you factory or trading company?
A: We are a manufacture with independent import and export rights.
Q2:How is the quality of your products?
A: Lotus is a manufacturer with production for more than 6 years,We have a complete production
management system and Independent laboratory for testing equipment with a high product
qualification rate .
Q3:How can I get the samples?
A: contact sales to get the samples
Q4:what’s the Minimum order Quantity and Payment?
A1: Payment:EXW,FOB,CFR,CIF,etc.
A2:Minimum：trial order is also available,but with sample price.
Q5:what’s your Lead time?
A: As the General size have stock with fast delivery,the customized size need to negotiate mostly
within 15days.
