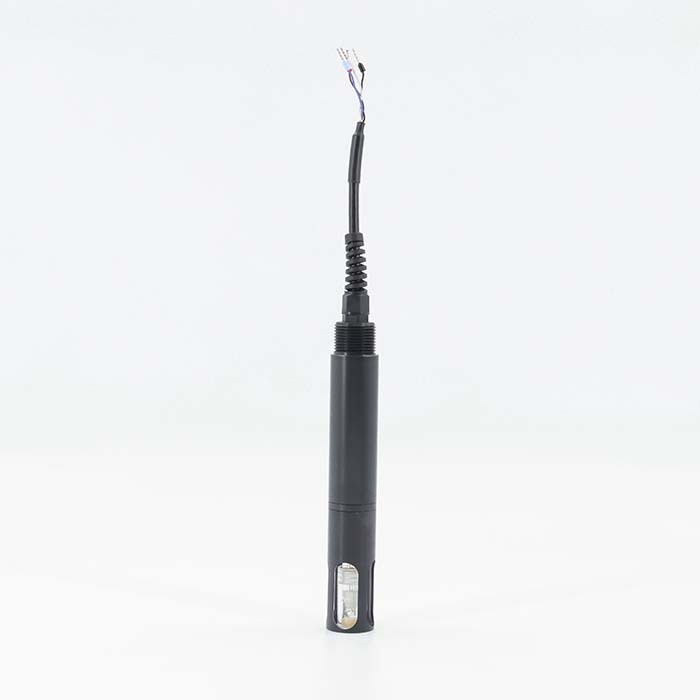

ORP-220 Sensor

Type: Water Quality Sensor Specifications: Diameter 30mm; Length189mm Material: POM; customizable Color: Black Model: ORP-220 OEM:Available MOQ:1PCS Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

ORP-220 is a basic type conventional water quality monitoring digital ORP sensor, using industrial on-line electrode, the electrode is designed as a spherical structure, compared to the flat structure increases the measuring contact area, the response speed is fast, the measurement is more accurate. Suitable for online long-term monitoring environment use.
Features:
1. Digital sensor, direct output of Rs-485 digital signal, support MODBUS/RTU
2. Double salt bridge, double high impedance design, strong anti-interference, data stability
3. 3/4" NPT up and down mounting thread design for easy installation
4. Low sensor power consumption, internal circuit anti-interference design
5. Electrodes can be replaced, support complex water applications, support electrode customization
Scope of application:
Online monitoring of river water quality, industrial wastewater, environmental water treatment, food and beverage, fermentation, etc.
Note: Different fields of application, according to high temperature, high pressure, strong acid alkali, corrosive media, etc. need to choose different characteristics electrode probe

Name	Parameter
Output Signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	Platinum grade
Range	-1500 to +1500mV
Accuracy	+-6mV
Defence rate	1mV
Working conditions	Default 0-65℃ ,<0.2Mpa,other customization
Calibration method	A little calibration
Response time	10 seconds T90
Temperature compensation	Automatic temperature compensation
Measurement	Diameter 30mm,Length 189mm
Power supply	12 or 24VDC +-10%,10mA
Level of protection	IP68,Water depth 20 meters
Service life	Sensor 1 year or more,depends
Cable Length	10 meters(Default),Customizable
Sensor housing materials	POM Customizable

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.

ORP-220 ORP Sensor User Manual DOWNLOAD.PDF
