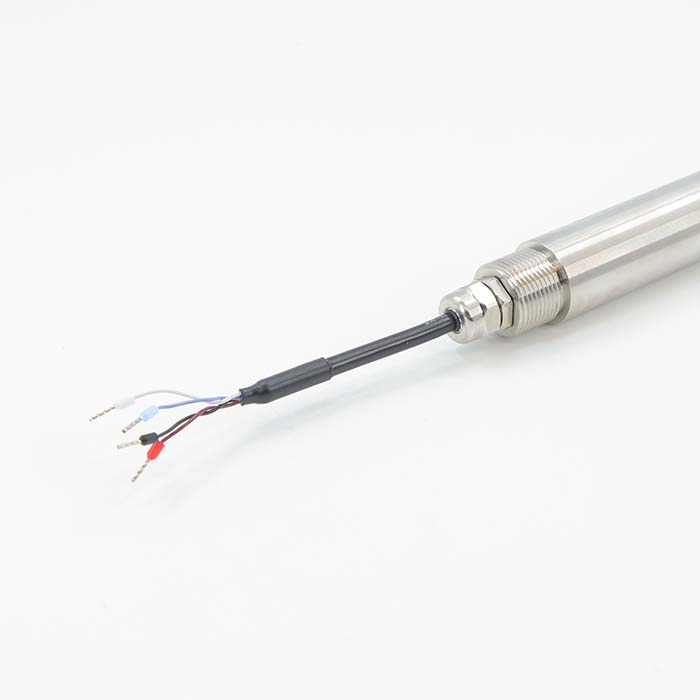

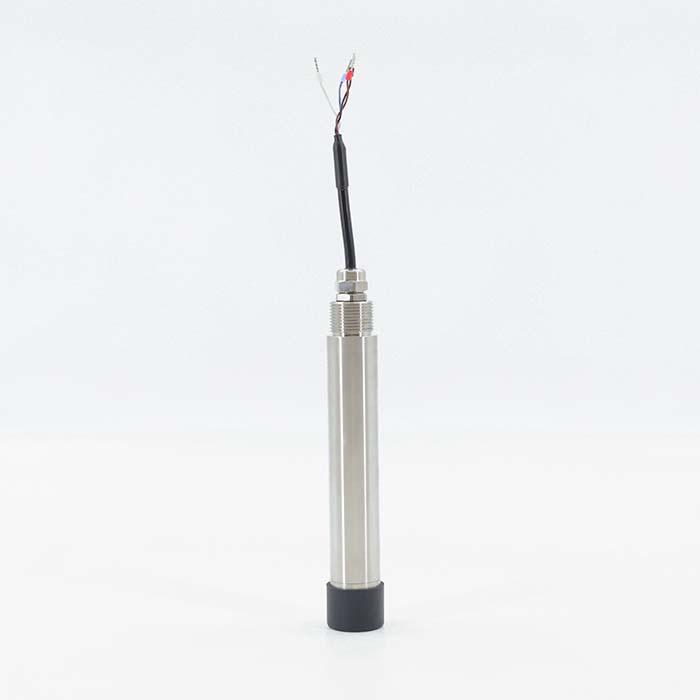

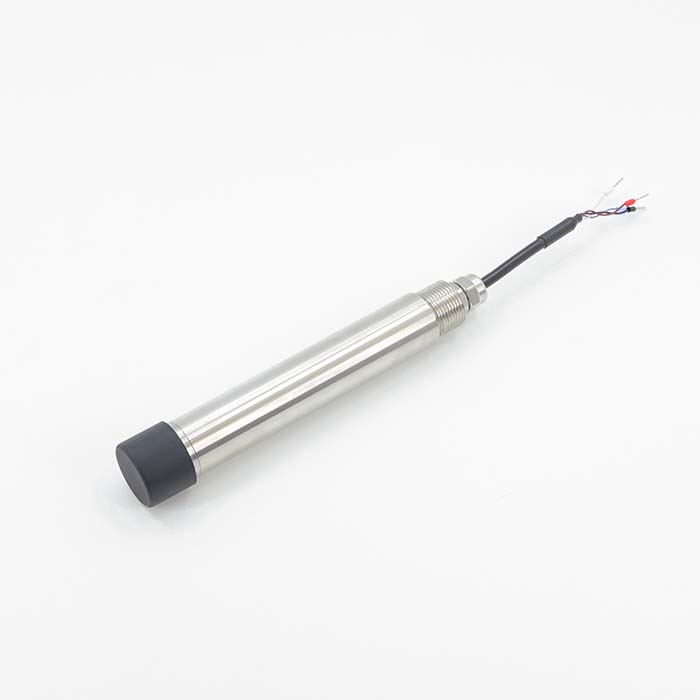

ODO-210 Dissolved Oxygen Sensor

Type: Water Quality Sensor Specifications: Diameter 30mm; Length189mm Material: POM or 360L stainless steel Color: Black, Silver Model: ODO-210 OEM:Available MOQ:1PCS Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

ODO-210 fluorescent dissolved oxygen sensor adopts the principle of "dynamic fluorescence quenching" to measure dissolution in water. The film at the top of this sensor is covered with a layer of fluorescent material. When the blue light emitted by the light emitting diode (LED) is exposed to the fluorescent material, the fluorescent material emits fluorescence when it returns from the stress state to the base state, fluorescence is the test signal.
Features:
1. Digital sensor, direct output of Rs-485 digital signal, support MODBUS/RTU
2. Built-in temperature, pressure sensor, can be automatically compensated; built-in salinity compensation
3. Optical design, no electrolyte consumption, measurement without oxygen consumption
4. Increased filter design, anti-light source interference, good stability
5. No preheating, no electroplating, fast response speed, the fastest 40 seconds response (T90)

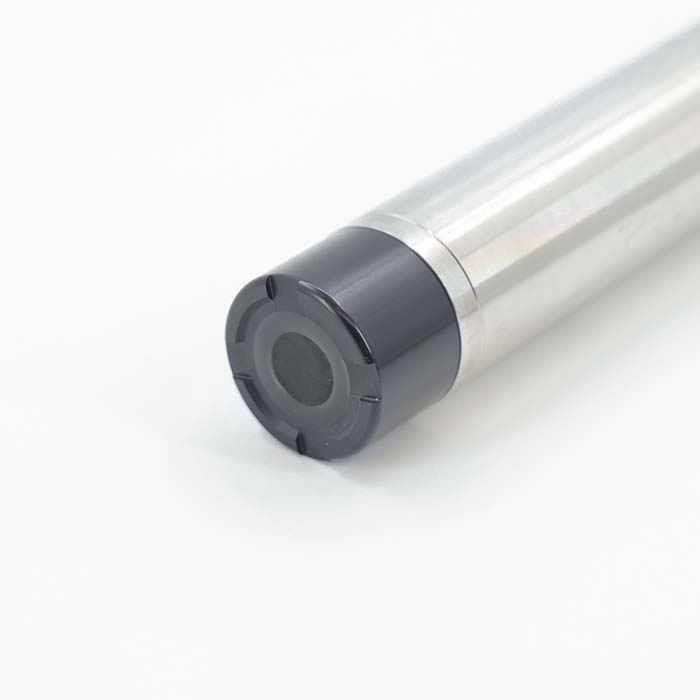

6. Fluorescent cap head is easy to replace, lower maintenance costs, longer use cycle
7. Surface for anti-corrosion passivation treatment
8. Low sensor power consumption, internal circuit anti-interference design

Name	Parameter
Output Signal	Support RS-485,MODBUS/RTU Protocol
Measurement method	Fluorescence quenching
Range	0-20mg/L (0-200% Saturation)
Accuracy	+-2%F.S. +-5℃
Defence rate	0.01mg/L, 0.1℃
Working conditions	0-45℃ ,<0.2Mpa
Calibration method	Two point calibration
Response time	40 seconds T90
Temperature compensation	Automatic temperature compensation(PT1000)
Power supply	12 or 24VDC +-10%,10mA
Measurement	Diameter 30mm, Length 189mm
Level of protection	IP68,Water depth 20 meters
Service Life	Sensor 1 year or more,depends
Cable Length	10 meters(Default),Customizable
Sensor Housing material	316 Stainless steel or POM

Logistics Transportation

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
