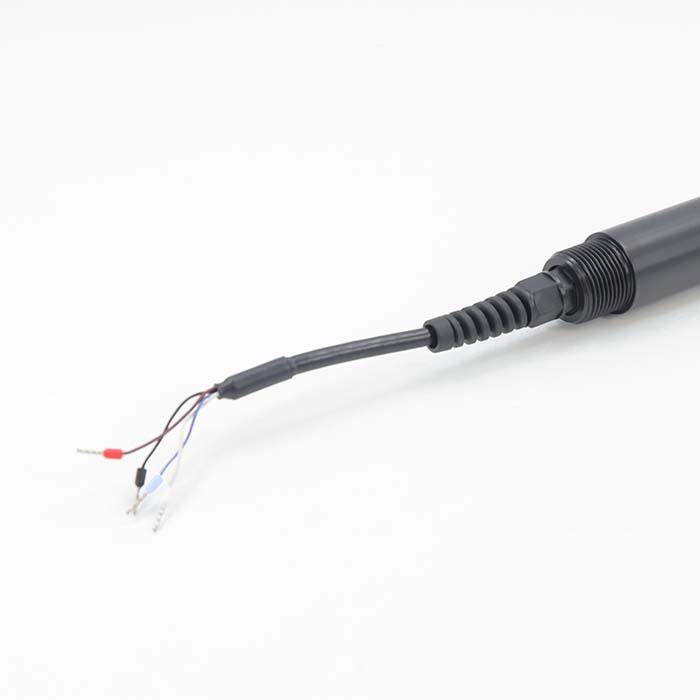

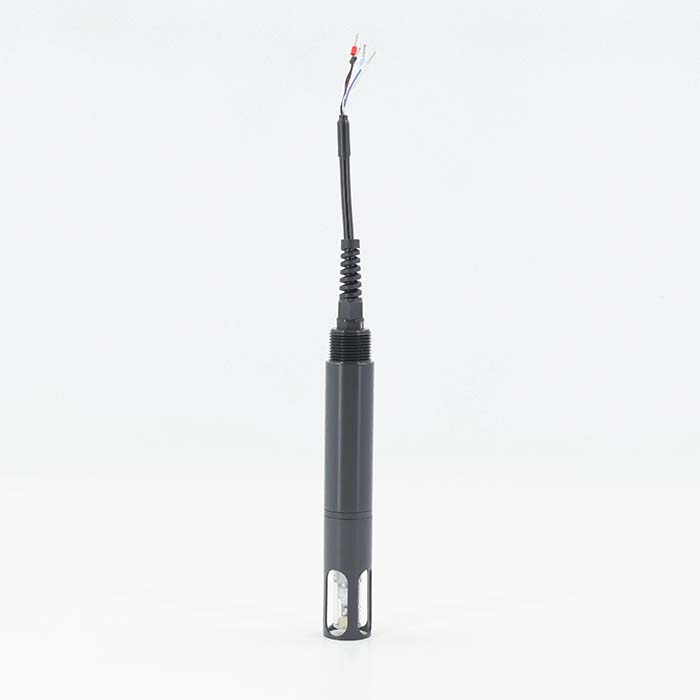

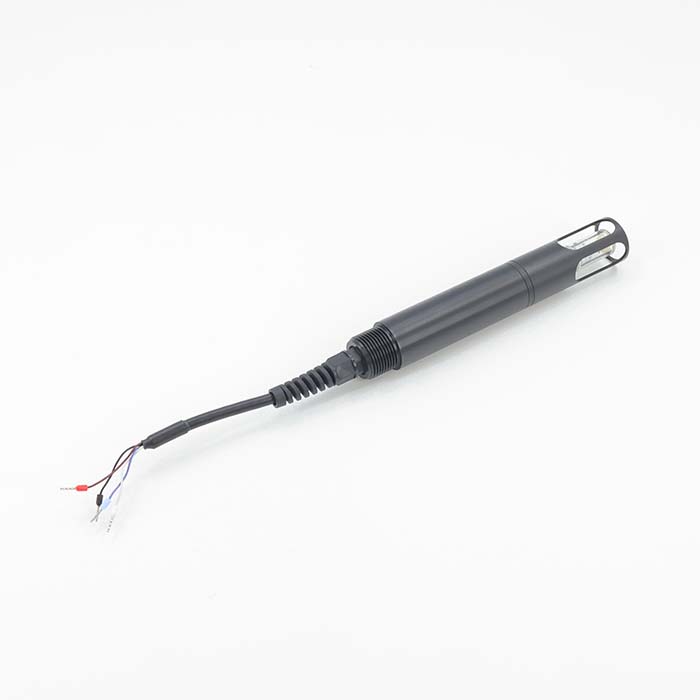

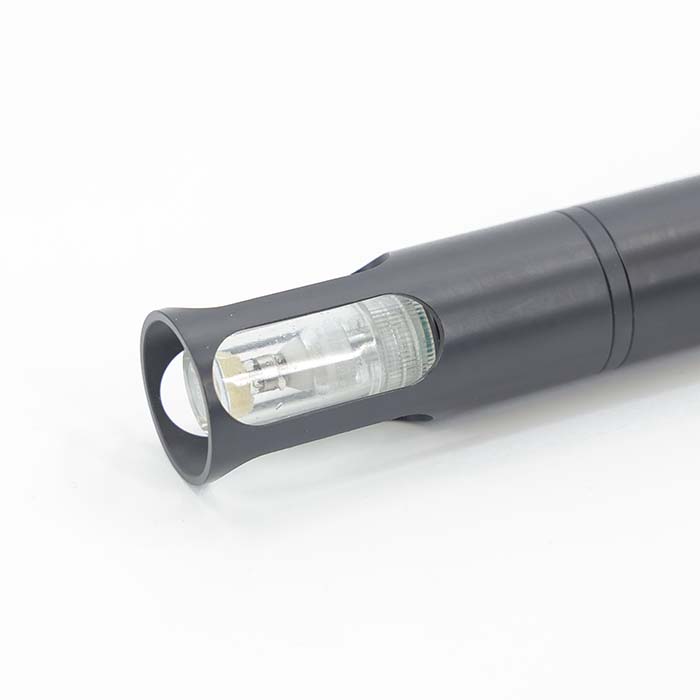

DCL-210 residual chlorine sensor

Type:Water Quality Sensor Specifications:Diameter 30mm; Length189mm Material:POM; customizable Color:Black Model:DCL-210 OEM:Available MOQ:1PCS Payment:T/T

Inquire Now Next Product

Product Description

Product Description:

DCL-210 is a basic type conventional water quality monitoring digital residual chlorine sensor; using industrial online electrode, advanced non-membrane-type constant voltage measurement principle, no need to replace the membrane and consume reagents, stable performance, simple maintenance, high sensitivity, fast response, measurement accuracy, high stability, superior repeatability performance, easy maintenance, versatile and other characteristics, can accurately measure residual chlorine in the solution.
Features:
1. Digital sensor, direct output of Rs-485 digital signal, support MODBUS/RTU
2. Built-in temperature sensor for automatic temperature compensation
3. Constant voltage measurement principle, no reagent consumption and membrane replacement, simple maintenance
4. 3/4" NPT up and down mounting thread design for easy installation
5. Low sensor power consumption, internal circuit anti-interference design
Scope of application:
Widely used in circulating water self-controlled dosing, swimming pool chlorination control and drinking water treatment plant, drinking water distribution network, swimming pool, hospital wastewater, water quality treatment engineering, etc. for continuous monitoring and control of residual chlorine content in water solution.

Name	Parameter
Output Signal	Support RS485,Modbus/RTU Protocol
Measurement Method	Constant Voltage Method
Range	0-20.00mg/L (HICO)
Accuracy	+-3% Value or 0.03mg/L
Defence Rate	0.01mg/L
Working Conditions	0-60℃ ,<0.2Mpa
Calibration Method	Two point Calibration
Response Time	30 Seconds T90
Temperature Compensation	Automatic Temperature Compensation(PT1000)
Power Supply	12 or 24 VDC +-10%,10mA
Level of protection	IP68,Water depth 20 meters
Service Life	Sensor 1 year or more,depends
Cable Length	10 meters (Default) Customizable
Sensor housing material	POM,Custmoizable

Logistics transportation:

FAQ：

Q1:Are you factory or trading company?

A: We are a manufacture with independent import and export rights.

Q2:How is the quality of your products?

A: Lotus is a manufacturer with production for more than 6 years,We have a complete production

management system and Independent laboratory for testing equipment with a high product

qualification rate .

Q3:How can I get the samples?

A: contact sales to get the samples

Q4:what’s the Minimum order Quantity and Payment?

A1: Payment:EXW,FOB,CFR,CIF,etc.

A2:Minimum：trial order is also available,but with sample price.

Q5:what’s your Lead time?

A: As the General size have stock with fast delivery,the customized size need to negotiate mostly

within 15days.
