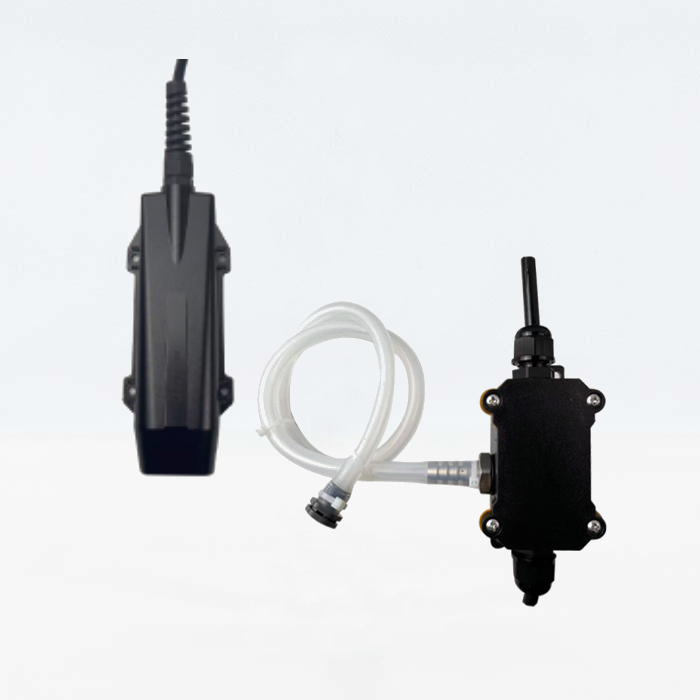

uses the Doppler effect to measure liquid flow rate. By emitting ultrasonic signals and detecting the frequency changes of particles or bubbles reflected in the fluid, the flow velocity and flow rate are calculated. Suitable for liquids containing suspended solids, such as sewage, mud, etc., it has the characteristics of non-contact measurement, easy installation, and corrosion resistance, and is widely used in industries, environmental protection, and other fields.
Measurement types: flow velocity, flow rate, water depth, water temperature
Protection level: IP68
Flow rate: The standard range is 0 m/s to 10.00 m/s (bidirectional flow but does not recognize the flow direction); The water depth above the sensor (20cm) can be customized for other flow velocity ranges.
-5 m/s to 5.00 m/s (bidirectional flow direction identification, flow velocity and flow rate with positive and negative signs)
Flow velocity measurement resolution: 1mm/s;
Flow velocity measurement accuracy: ± 1% of the measured flow velocity;
Depth measurement: 0.02m to 10.00m; Resolution: 2mm Accuracy: ± 0.2%;
Temperature range: 0-60 º C; Resolution: 0.1 º C;
Flow range: 10 liters/second to 99999999 cubic meters/hour
Power supply: Battery powered, 12VDC;
Output signal (battery powered): RS485;
RS485 output signal content: flow rate, instantaneous flow rate, cumulative flow rate, water level, temperature
Replace the breathing valve every 3 to 5 months
Logistics transportation:
FAQ：
Q1:Are you factory or trading company?
A: We are a manufacture with independent import and export rights.
Q2:How is the quality of your products?
A: Lotus is a manufacturer with production for more than 6 years,We have a complete production
management system and Independent laboratory for testing equipment with a high product
qualification rate .
Q3:How can I get the samples?
A: contact sales to get the samples
Q4:what’s the Minimum order Quantity and Payment?
A1: Payment:EXW,FOB,CFR,CIF,etc.
A2:Minimum：trial order is also available,but with sample price.
Q5:what’s your Lead time?
A: As the General size have stock with fast delivery,the customized size need to negotiate mostly
within 15days.
